Replacing The Air Filter, Coil Pack And Spark Plugs On A 500L 1.4 MPI

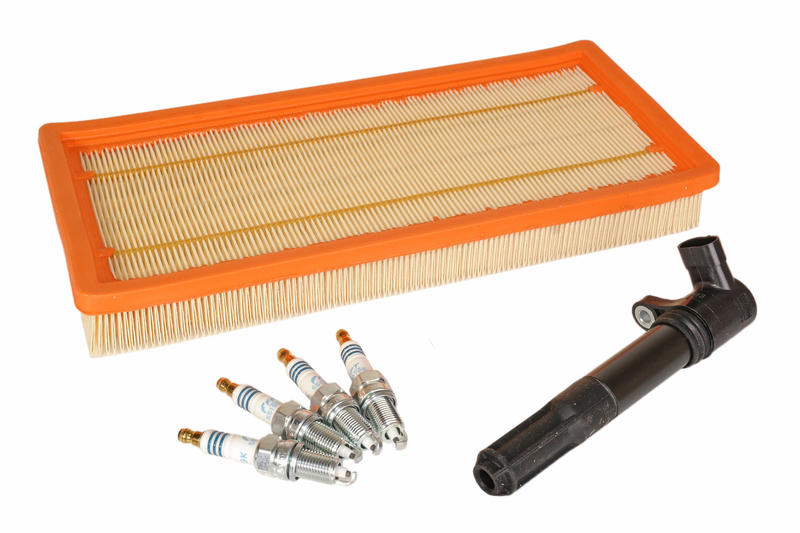

Air filter 51806865, spark plugs 55188857 and coil pack 46777288

border='1'

Undo the x2 10mm housing bolts

border='1'

Unclip the intake hose.

border='1'

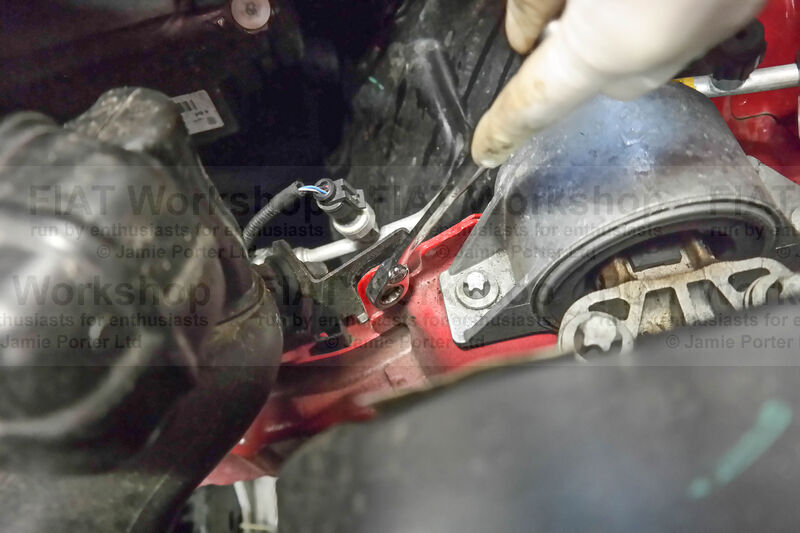

Undo the 10mm bracket bolt.

border='1'

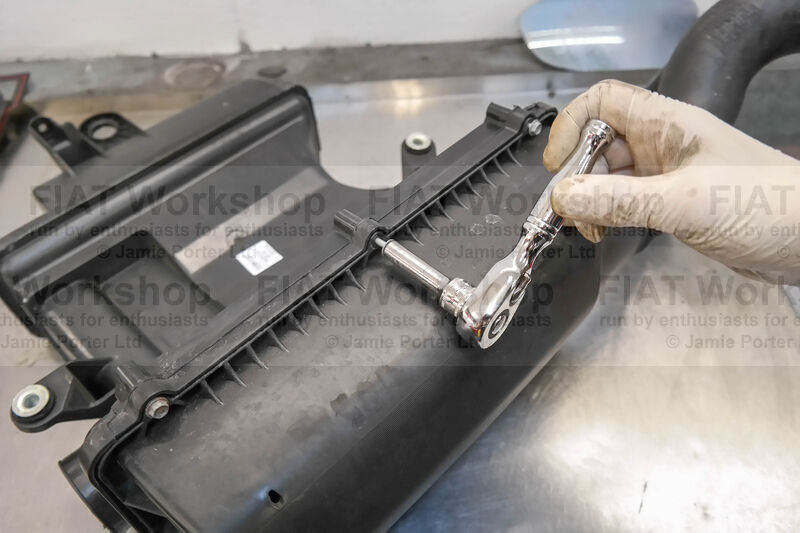

Remove the housing and undo the x6 10mm bolts along the front.

border='1'

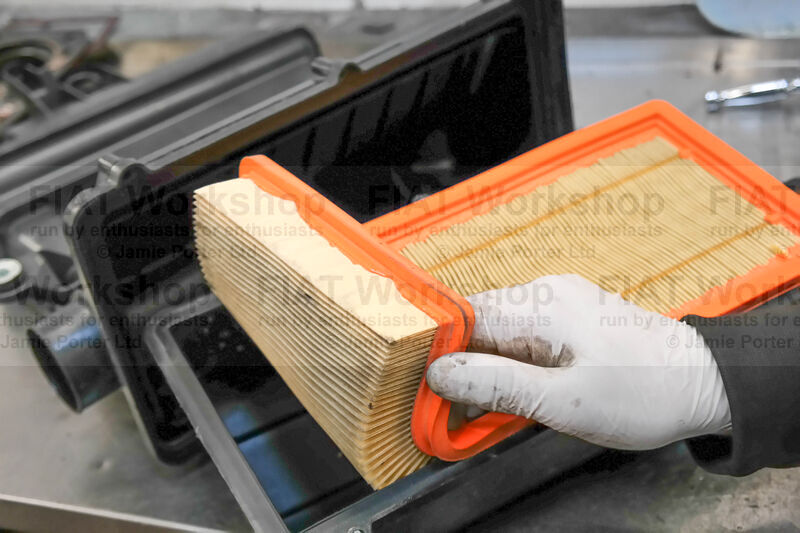

Replace the air filter.

border='1'

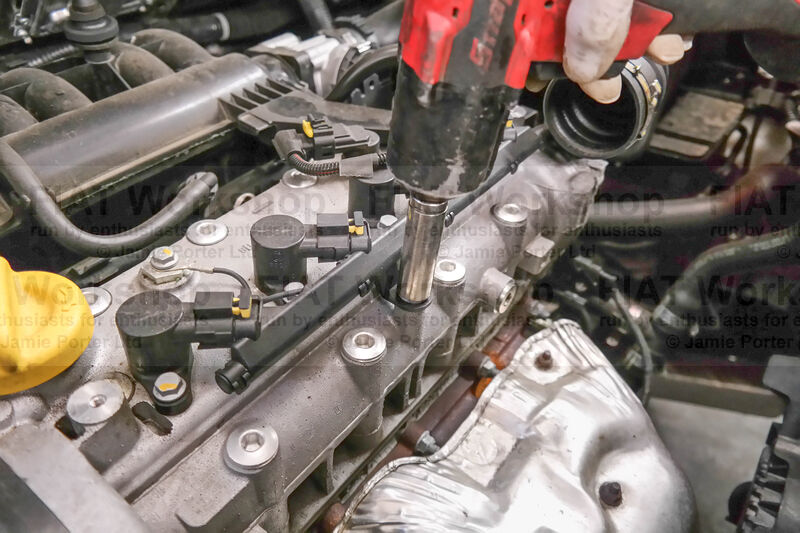

Undo the 13mm bolt to the coil pack rail.

border='1'

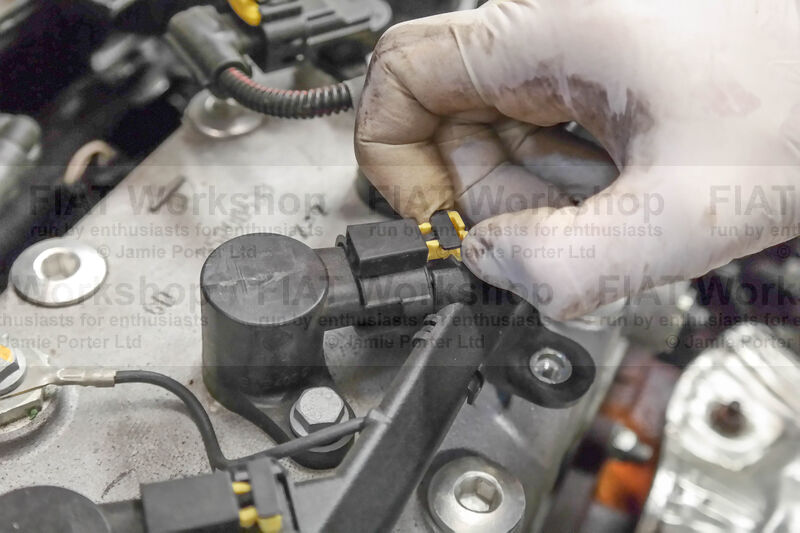

Pull out the securing clips on all four coil packs and unplug them.

border='1'

Undo the x4 retaining bolts to the coil packs.

border='1'

Now remove all coil packs.

border='1'

Using a 16mm long socket undo the spark plugs.

border='1'

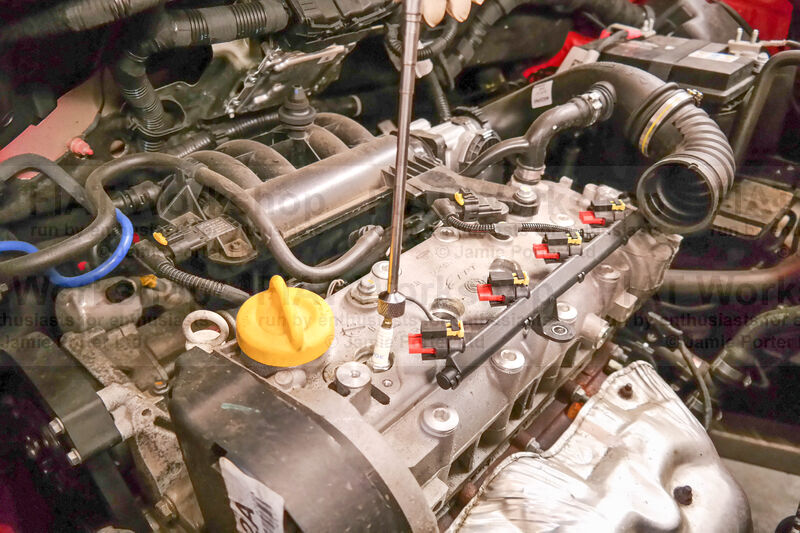

Extract the plugs with a magnetic rod.
