Removing The Right Side Engine Mount On A Fiat 500x 1.6/2.0 MJET


To remove the right side engine mount the air filter housing and fuel filter support needs to be removed. This 'How to' is based on the 1.6 model.

Engine mount 52070967

WORKSHOP TIME 1hr






If you would like to BOOK yourself in the price of this repair in our workshop is £156.00

:alt

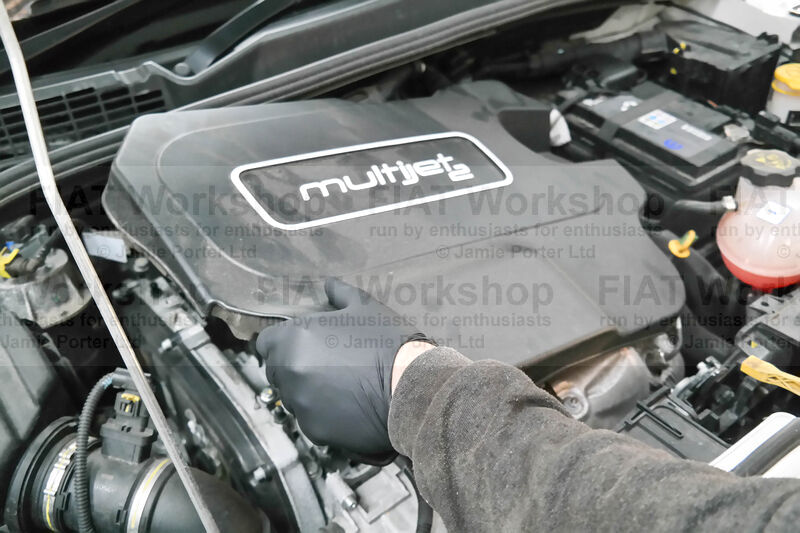

Remove the plastic engine cover.

:alt

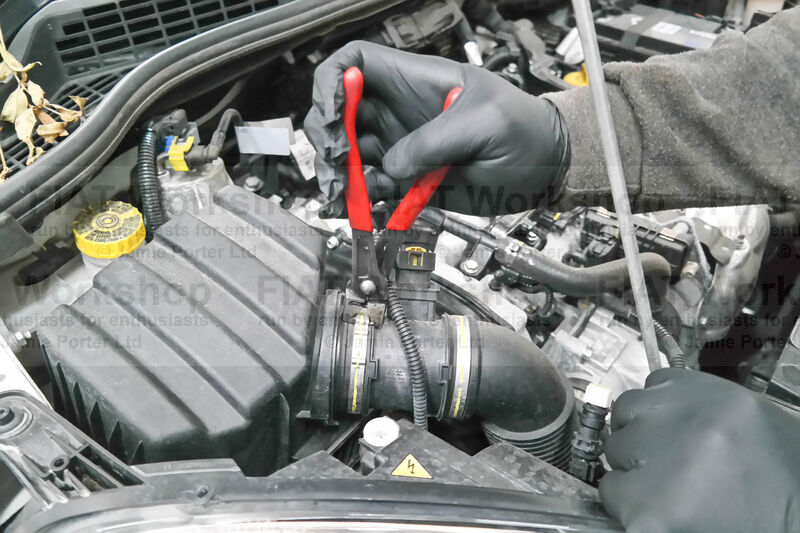

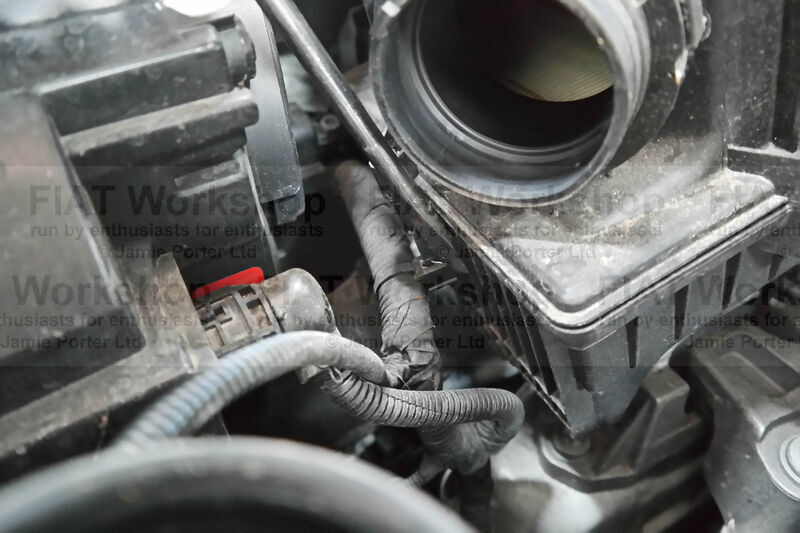

Unclip the air flow meter from the air filter housing.

:alt

Unclip the cable harness to the air box.

:alt

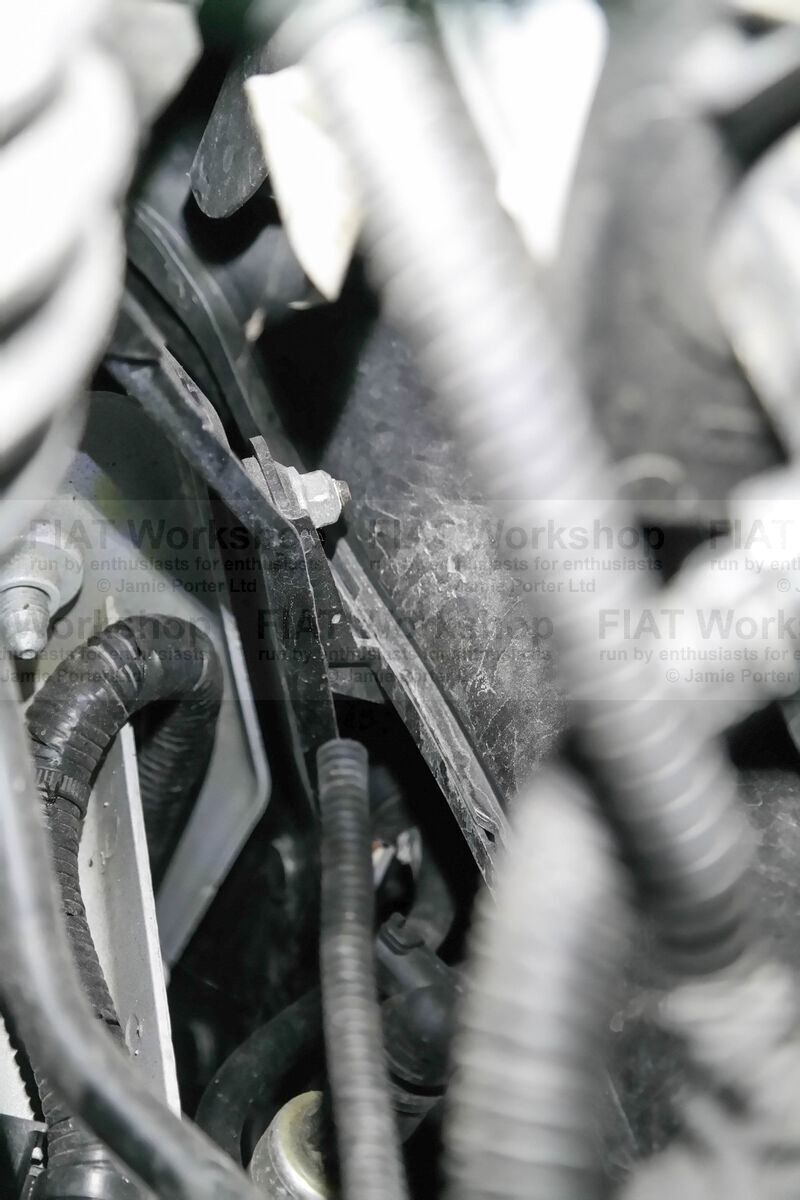

Follow the air intake rigid hose towards the front bumper to a connecting bracket and undo the 10mm nut.

:alt

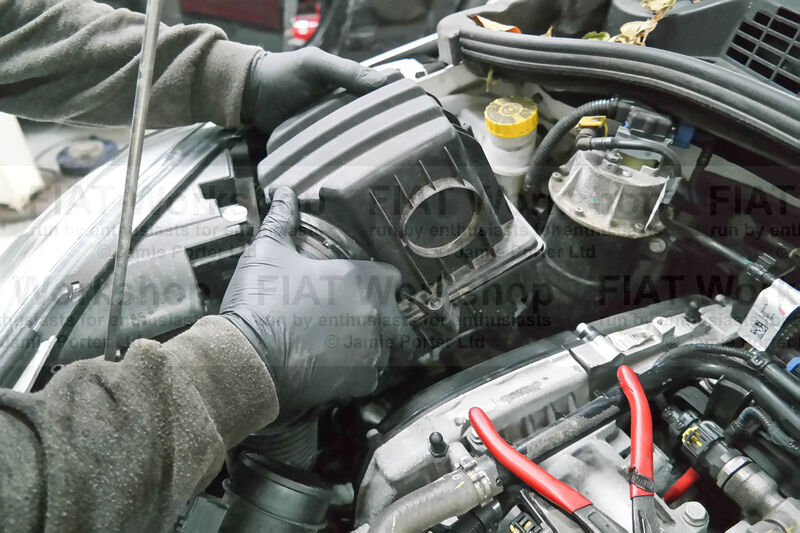

Disconnect the air filter housing from the rigid hose (there are x4 plastic push tabs holding the rigid hose)

:alt

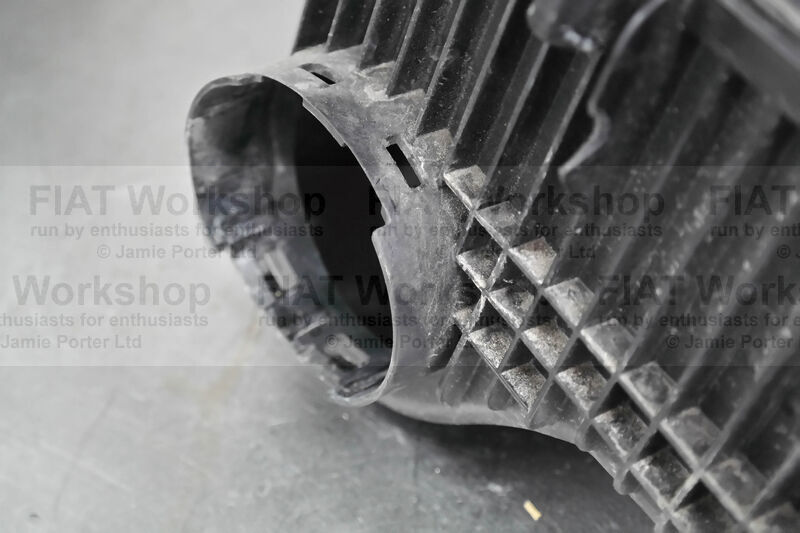

This is where the rigid hose fits into the air filter housing.

:alt

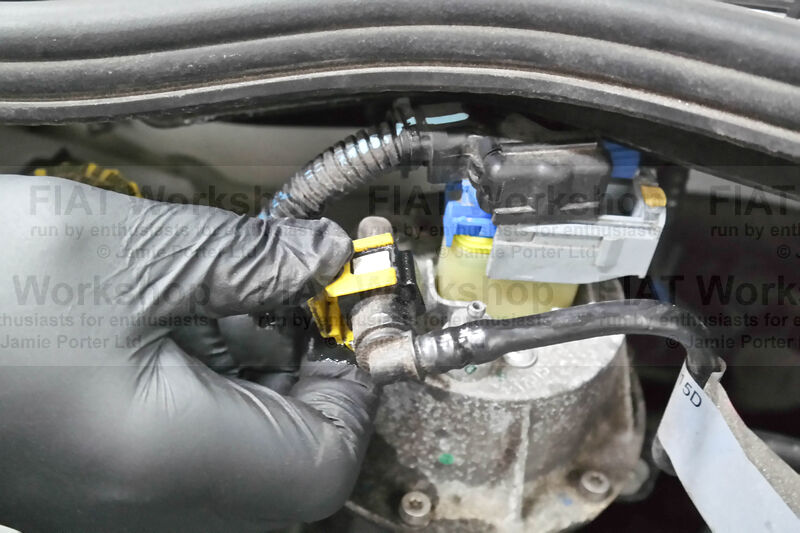

Pull the yellow locking tab to the fuel filter outlet hose and squeeze the connector to release.

:alt

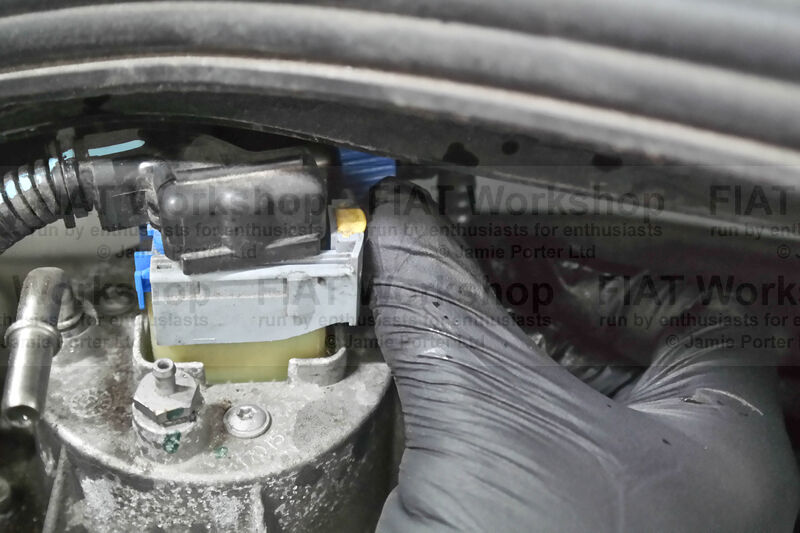

Lift up the yellow securing pin to the fuel sensor connector and slide the connector to your right.

:alt

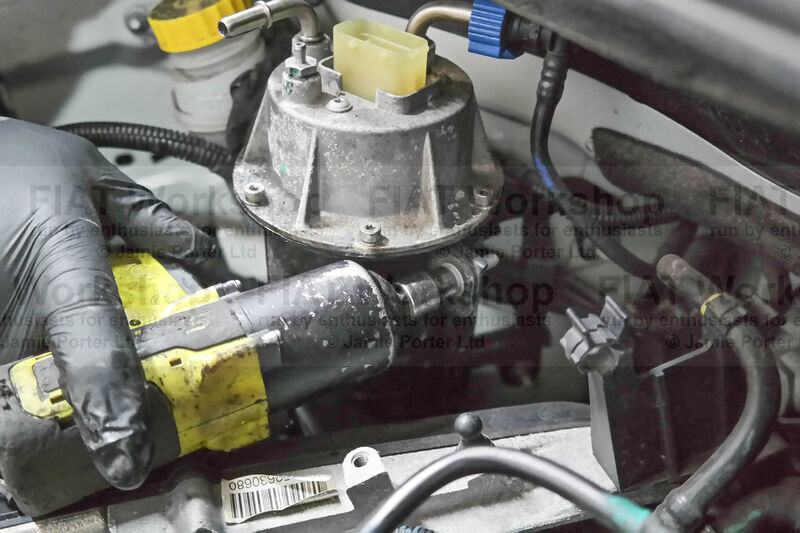

Undo the x2 10mm bolts holding the fuel filter housing.

:alt

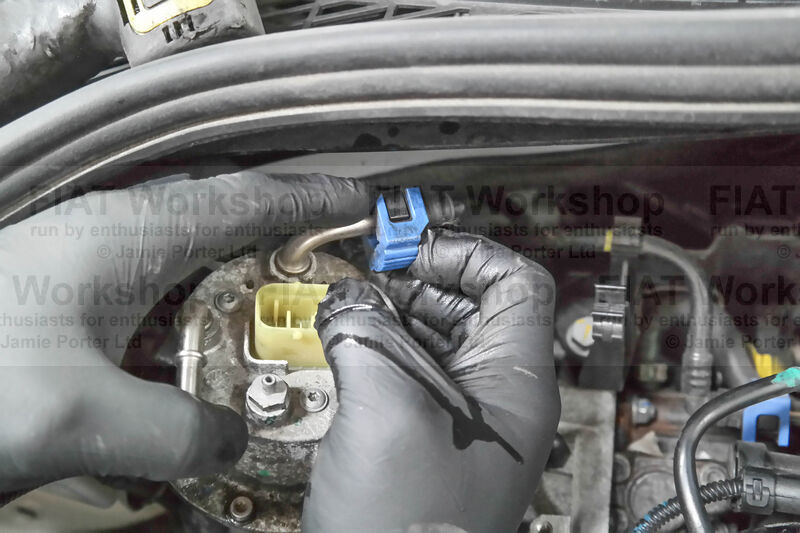

Slide back the blue locking tab to the fuel filter inlet hose and disconnect the hose.

:alt

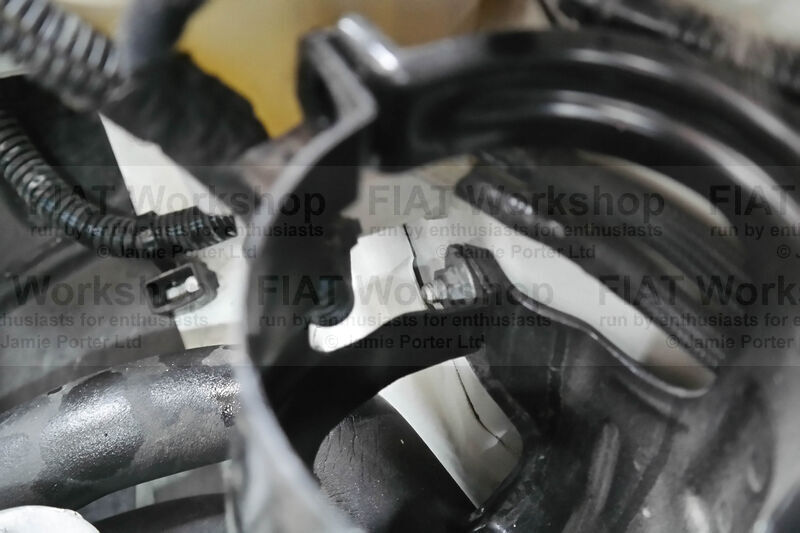

Undo the 10mm nut to the fuel filter housing support bracket.

:alt

Undo the the x4 10mm undertray screws (x2 front, x2 rear)...

:alt

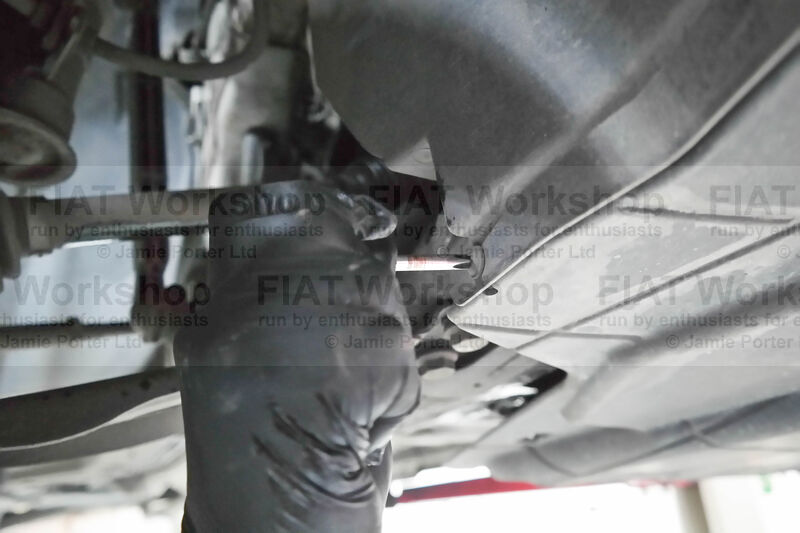

...and the x4 Philips (x2 on either side).

:alt

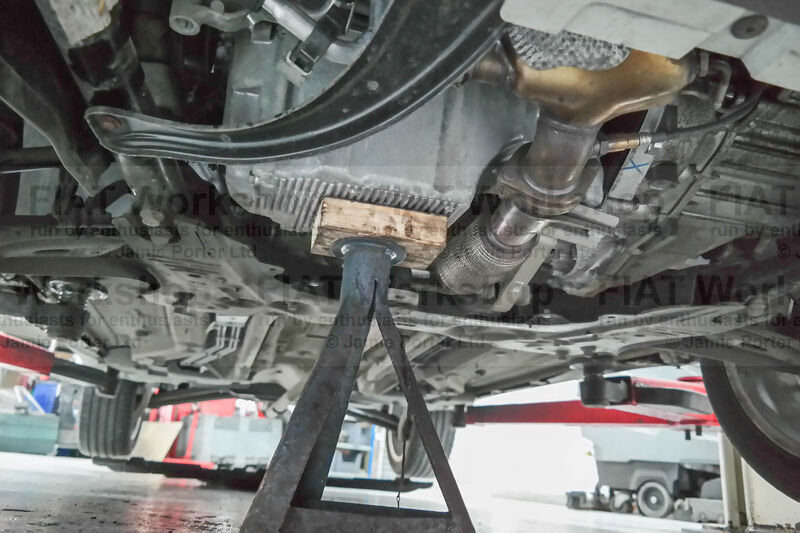

Support the engine from underneath the sump.

:alt

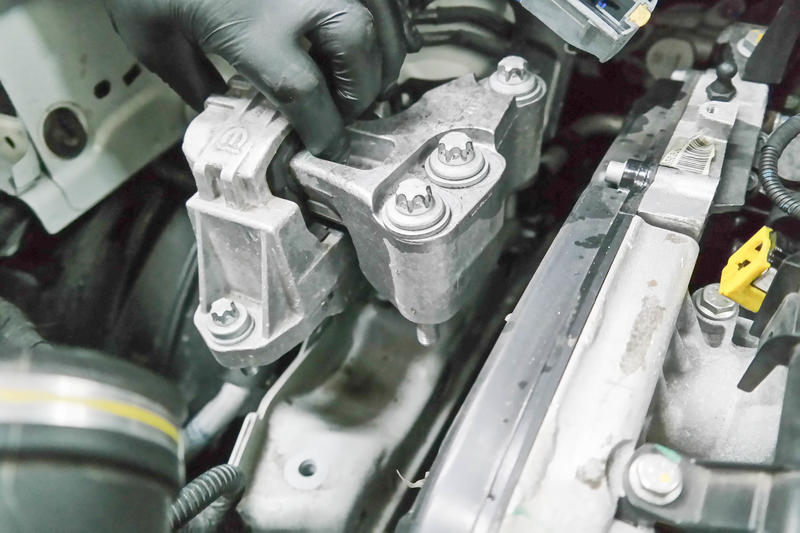

Undo the x3 E18 bolts....

:alt

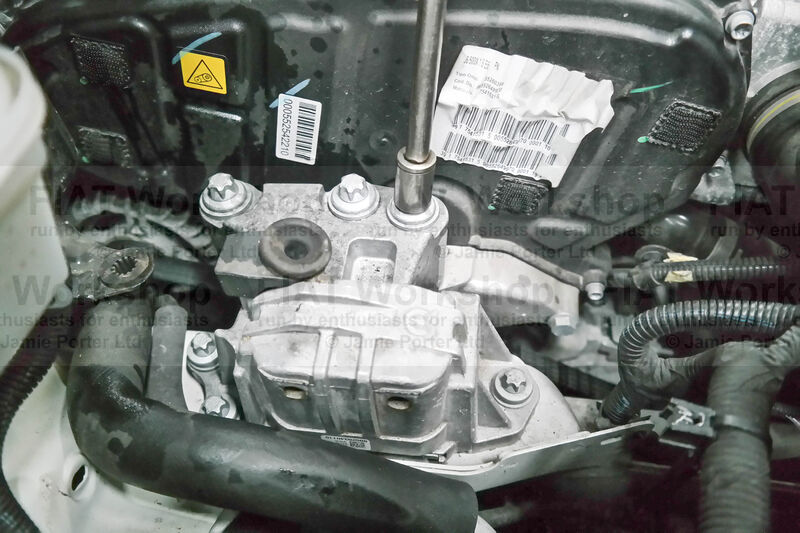

....and the x3 E14 bolts. You can now remove the engine mount.

:alt

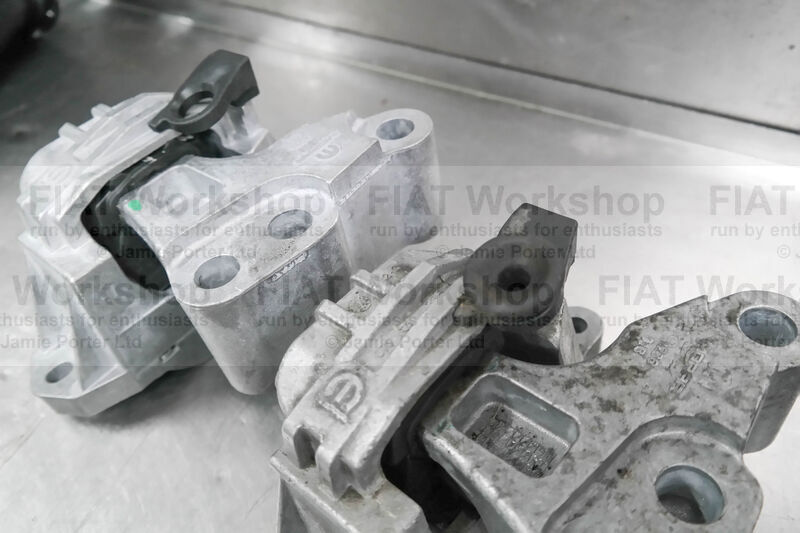

You need to swap over the rubber grommet on the engine mount bracket.
