Removing The Air Filter On A Fiat 500 0.9 Turbo (Twin air)




The air filter housing is incorporated with the plastic engine cover.
This 'How to' is based on the 85hp model.

Air filter 51881024

border='1'

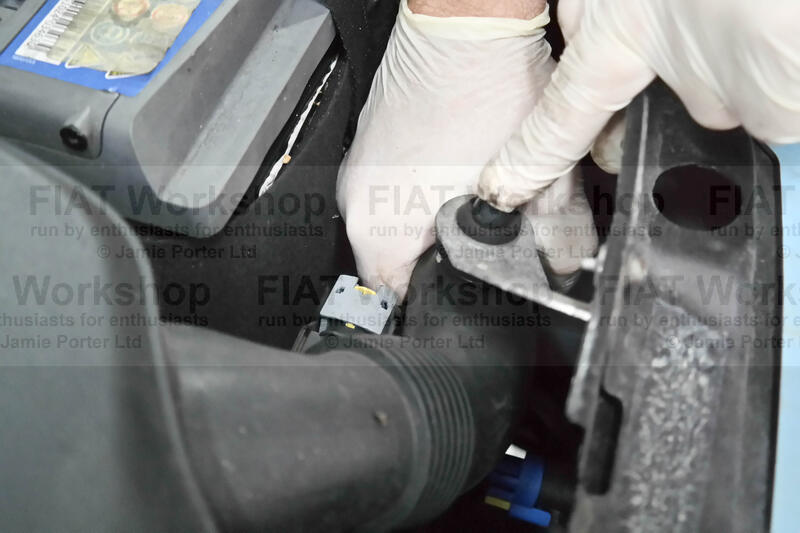

Unclip the turbo induction pipe.

border='1'

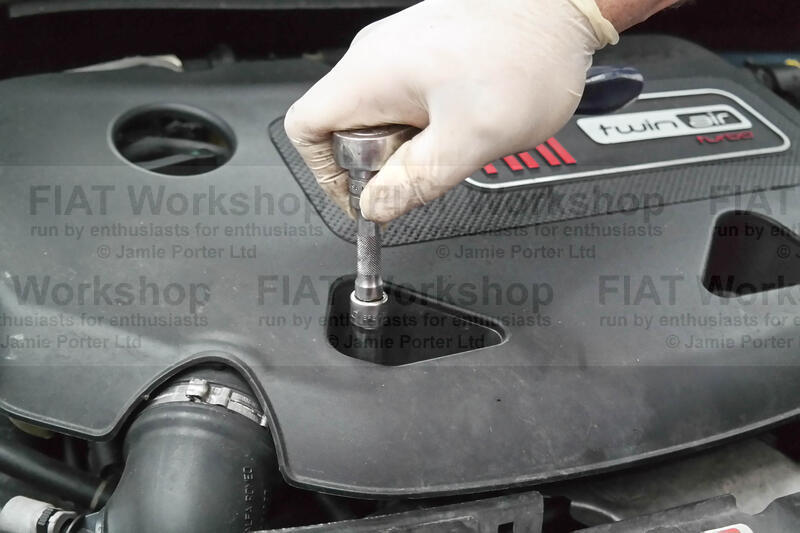

Undo the x2 M10 bolts to the engine cover.

border='1'

Pull the lug from the grommet on the air intake pipe...

border='1'

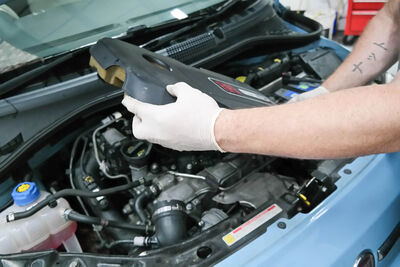

...and remove the engine cover/air filter housing (give the rear a tug as there's a large rubber grommet holding it).

border='1'

Turn the engine cover over and undo the x6 7mm screws to the air filter housing lid.

border='1'

You can now peel out the old air filter.
