Removing The Spark Plugs On A Fiat 500 0.9 Turbo (Twin air)




There's only two spark Plugs to change on a Fiat 500 0.9

Spark plug 55242187

border='1'

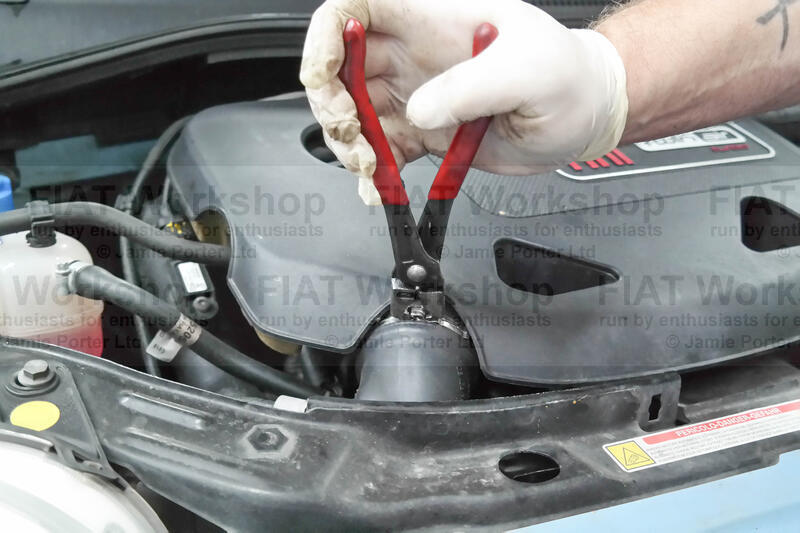

Unclip the turbo induction pipe.

border='1'

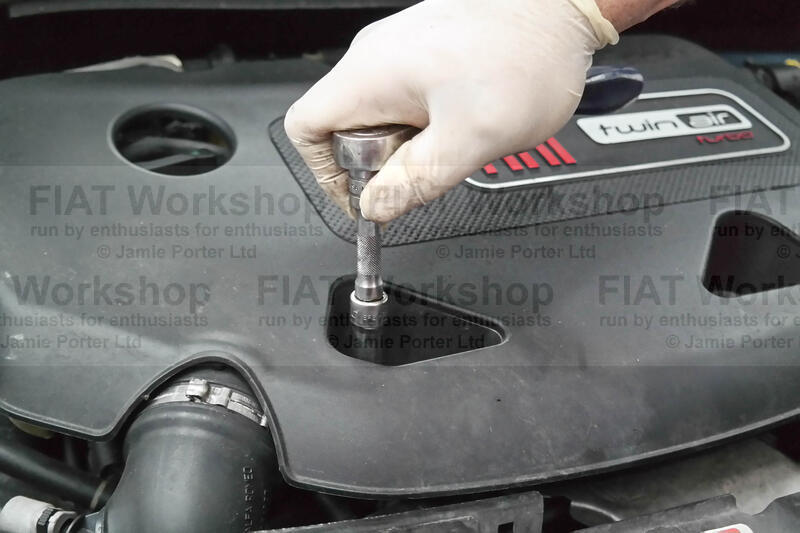

Undo the x2 M10 bolts to the engine cover.

border='1'

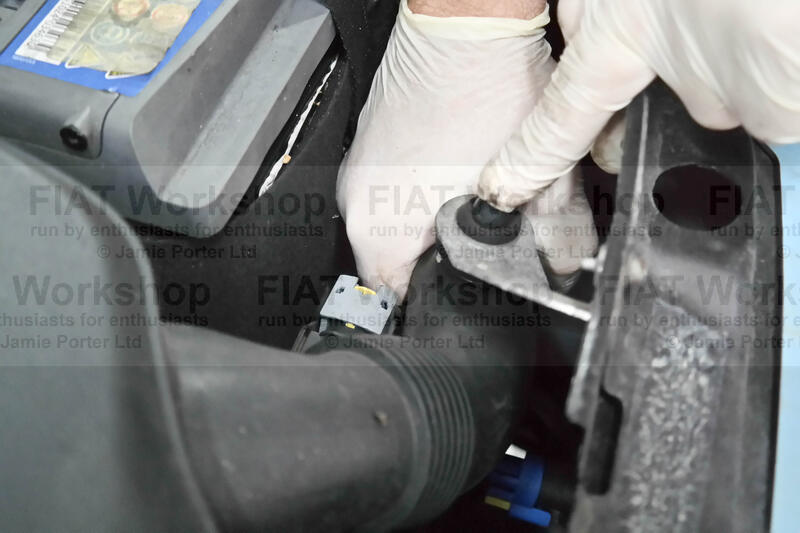

Pull the lug from the grommet on the air intake pipe...

border='1'

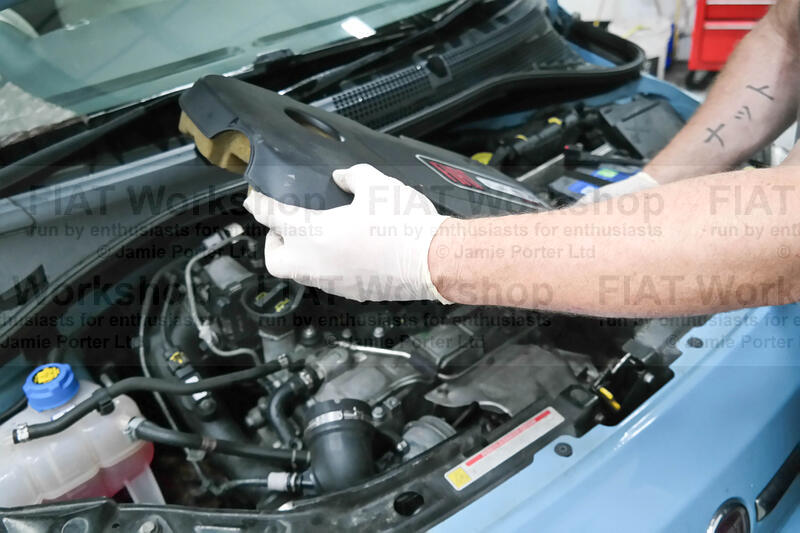

...and remove the engine cover/air filter housing (give the rear a tug as there's a large rubber grommet holding it).

border='1'

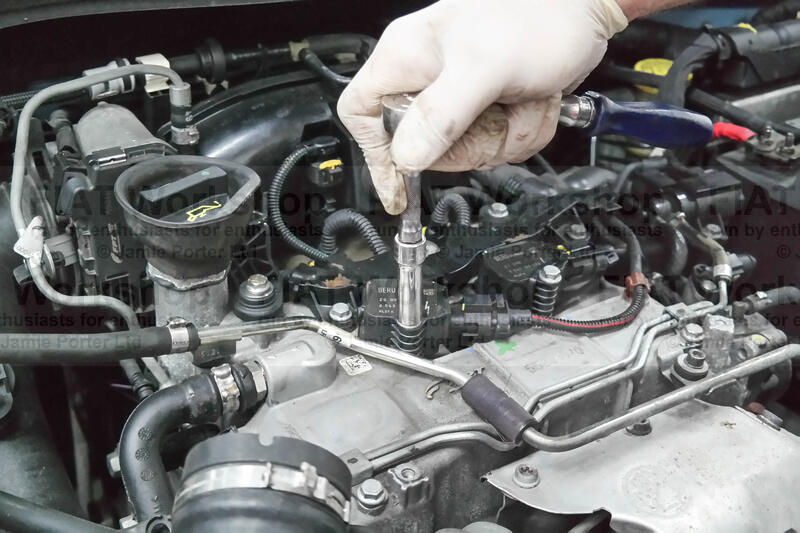

Undo the M10 bolts to the coil packs.

border='1'

You can leave the wires connected when you pull them out.

border='1'

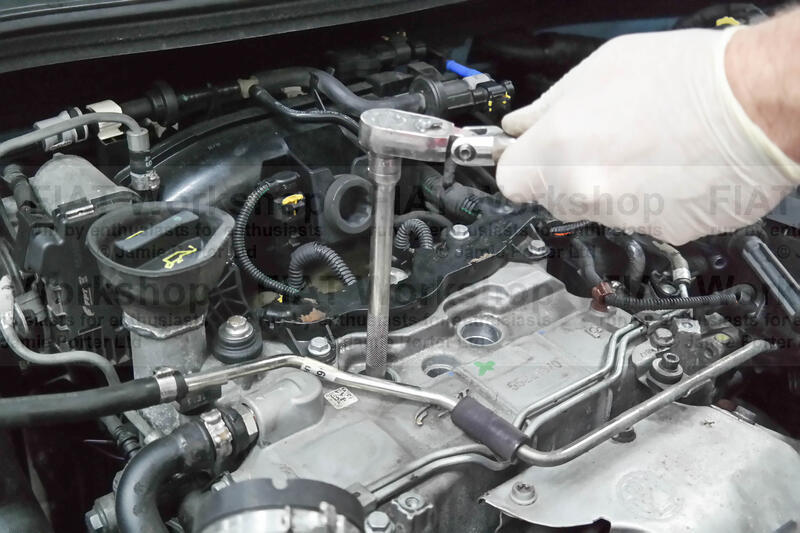

The spark plugs are 16mm.

border='1'

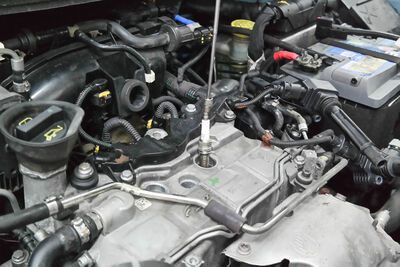

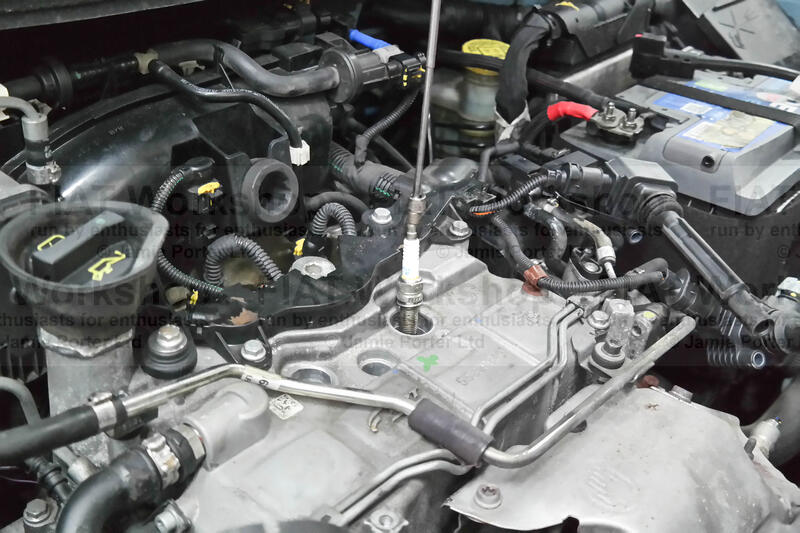

Use a magnetic rod to extract the spark plugs.
