Replacing The Clutch Fork On A Fiat 500 1.2 8v

When replacing the clutch it's a good idea to also replace the clutch fork and bushes as the fork wears and the easiest way to remove it is by destroying the top bush.

Clutch fork kit 55250936









FOR REMOVAL OF THE CLUTCH HOUSING GO TO.... https://www.fiatworkshop.co.uk/fiat_500_1.2_clutch_removal.shtml


:alt

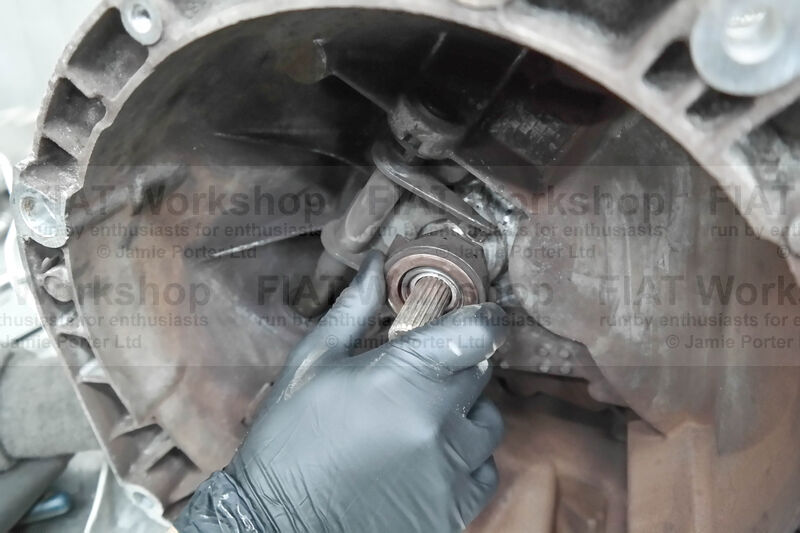

Remove the clutch release bearing (if not done so already).

:alt

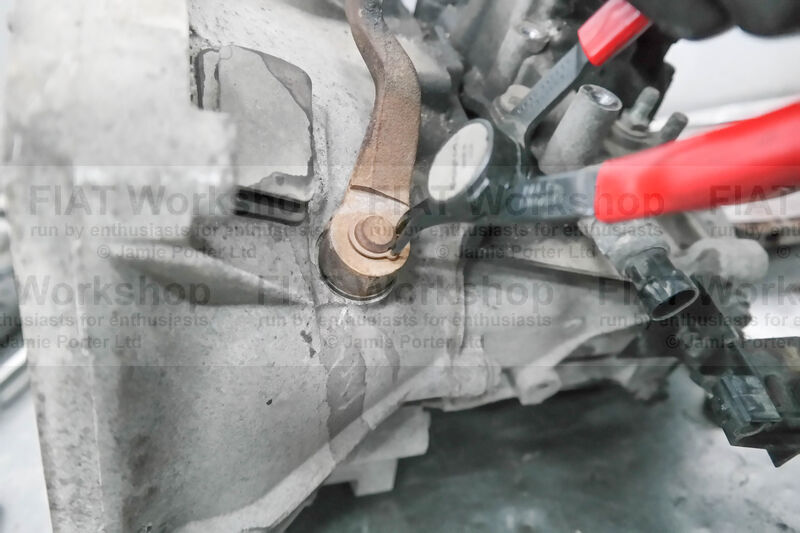

Release the circlip to the clutch fork arm and remove arm.

:alt

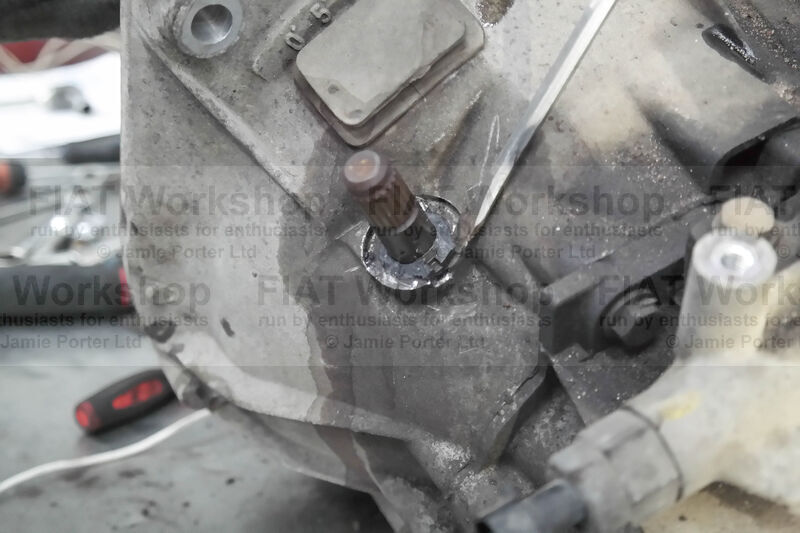

Carefully break away the rim of the top bush.

:alt

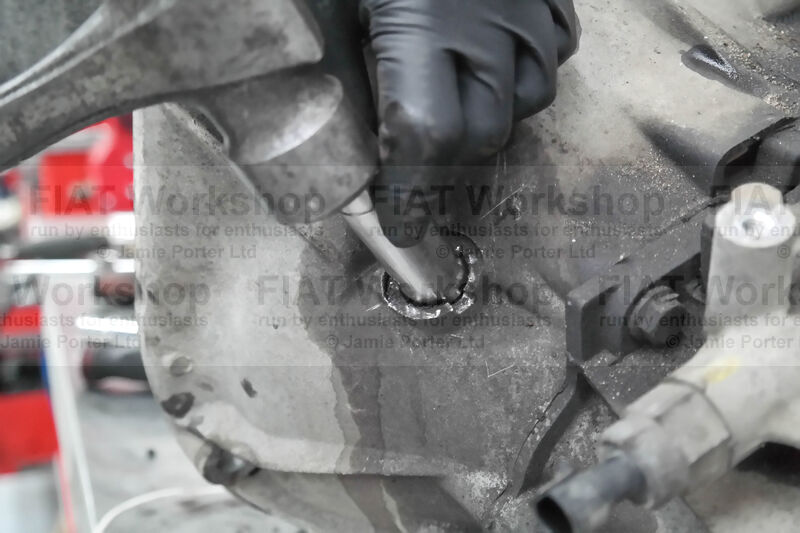

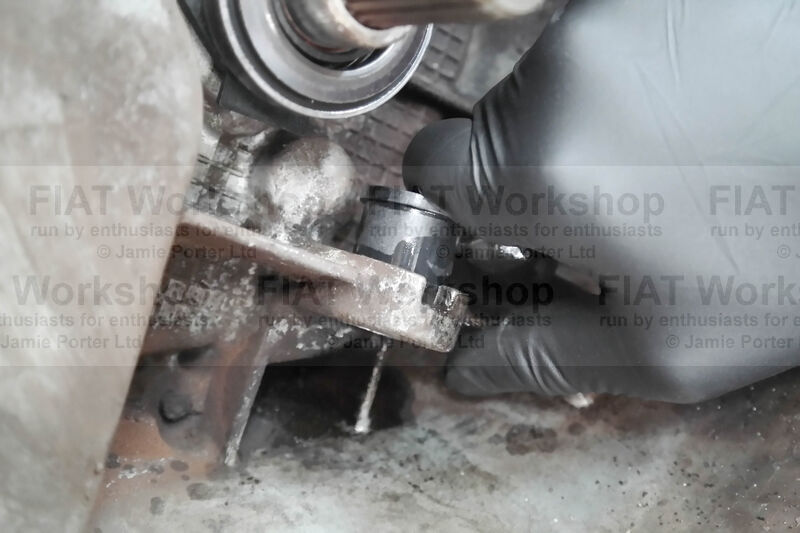

Place a close fitting socket over the top of the clutch fork and tap out the top bush.

:alt

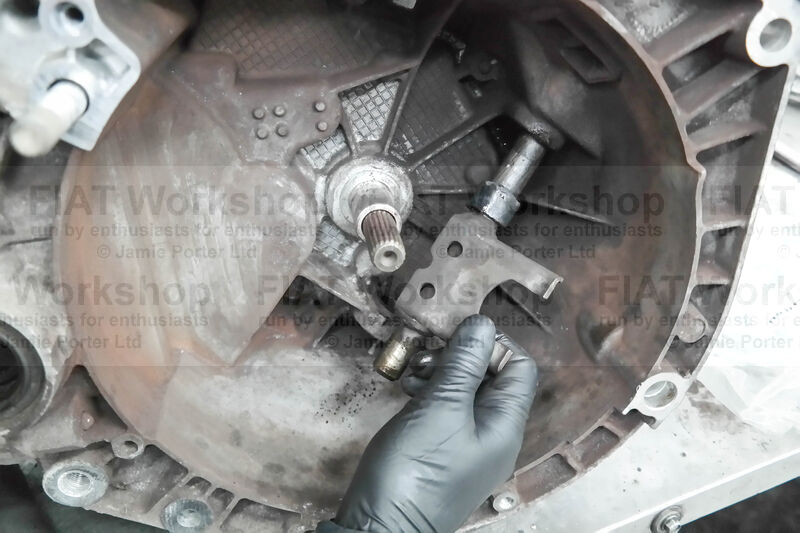

Slide the clutch fork up out of the lower bush then drop it down out of the housing.

:alt

Break out the old bottom bush, apply a little grease and position the new bush.

:alt

Using a plastic trim tool (or something similar) to protect the bush gentley tap it into place.

:alt

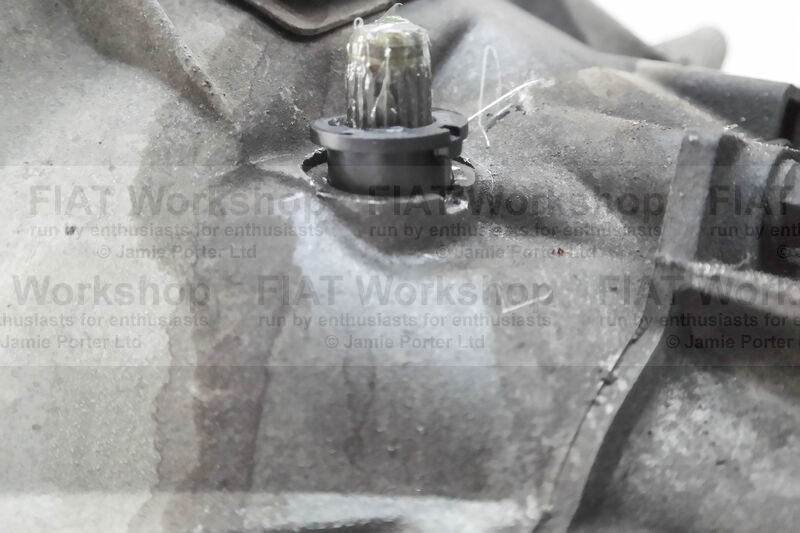

Replace the new clutch fork, apply a little grease and position the top bush (noting the recess for the lug).

:alt

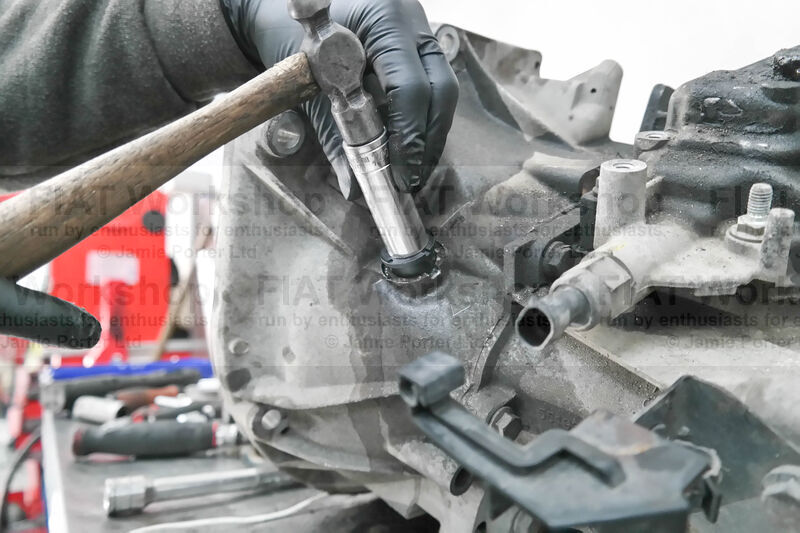

Again, using a close fitting socket tap the top bush into place.

:alt

Replace the clutch fork arm and circlip (there will be a larger spline on the clutch fork which aligns with a recess in the arm).

:alt

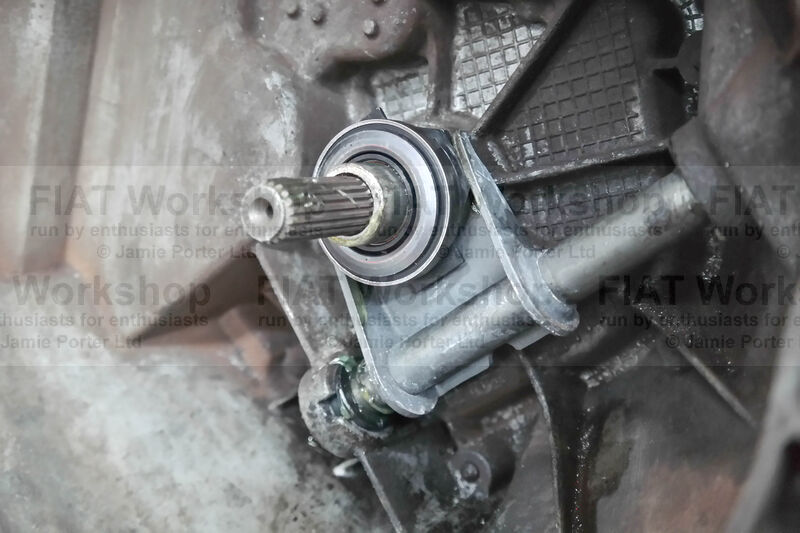

Grease the shaft to the release bearing, replace the bearing and check that everything moves as it should.
