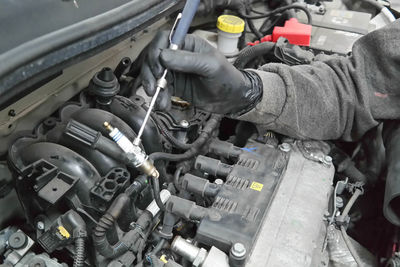

Removing The Spark Plugs On A Fiat 500/Panda/Punto/Grande Punto 1.2 8v


The spark plugs are buried behind the rocker cover. This 'How to' is based on the 500.

Spark plug 55190788

WORKSHOP TIME 30mins







If you would like to BOOK yourself in the price of this service in our workshop for the 500 is £70.80

:alt

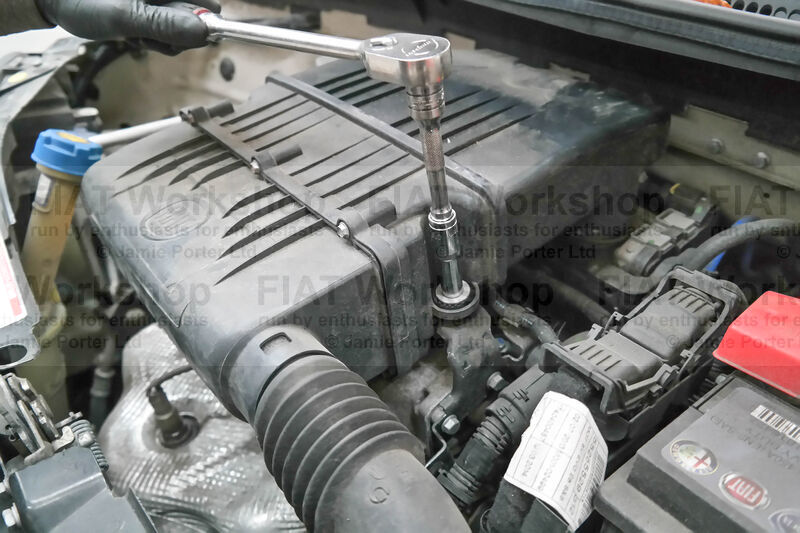

Undo the x2 10mm bolts to the air filtration box.

:alt

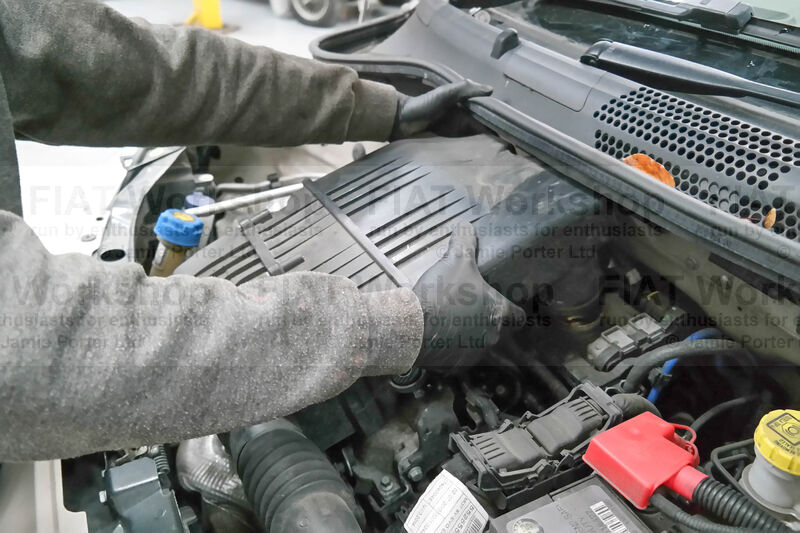

Pull the filtration box lose from the top mounting lug.

:alt

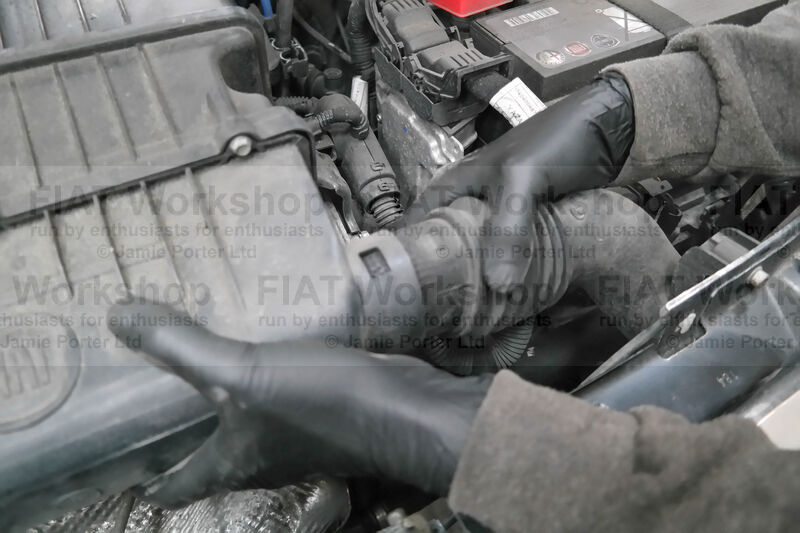

Pull out the air intake sleeve.

:alt

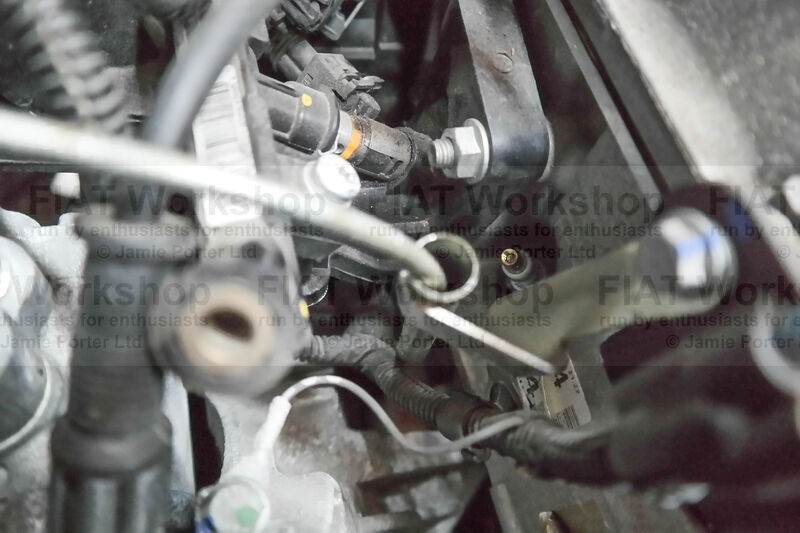

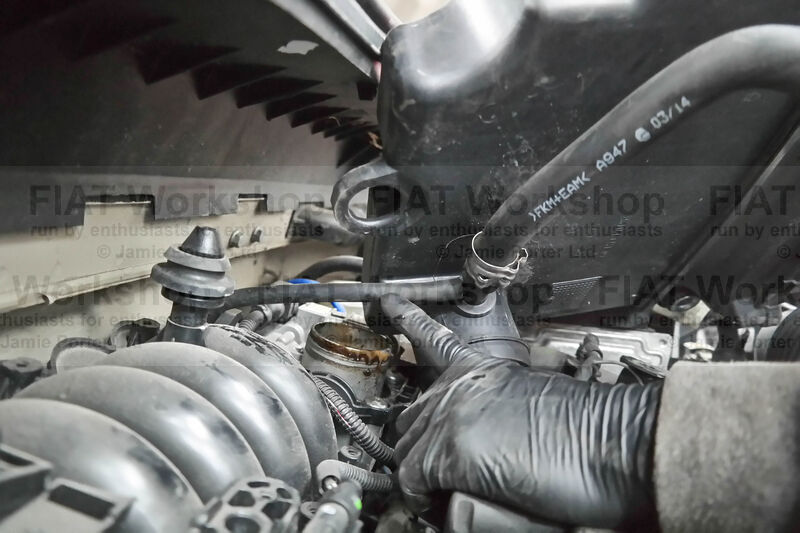

Unclip the camshaft breather hose.

:alt

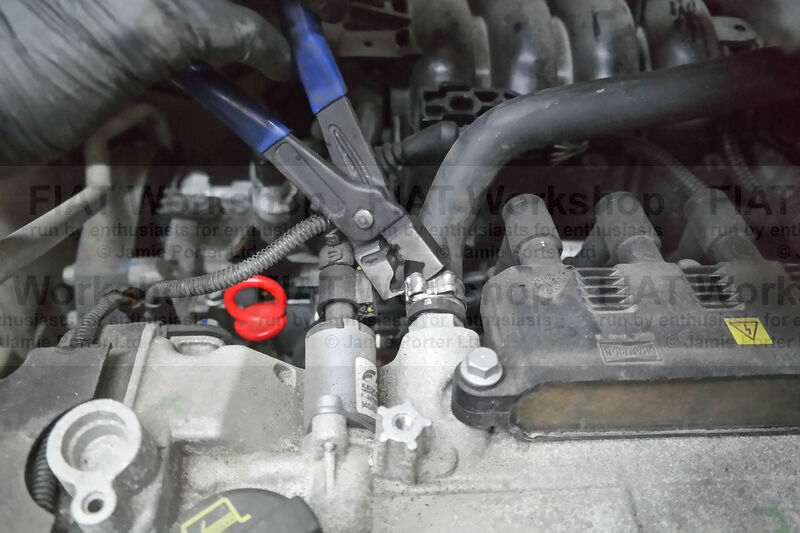

Pull of the manifold breather hose.

:alt

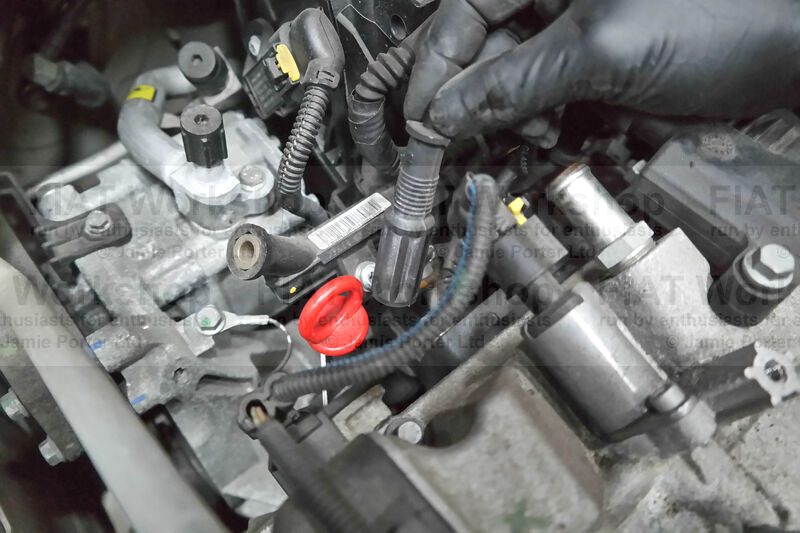

We've pulled a spark plug cap off of a plug to show you where they are (you can just see the gold tip).

:alt

Pull off the remaining spark plug caps.

:alt

Unscrew the spark plugs with a 16mm deep socket.

:alt

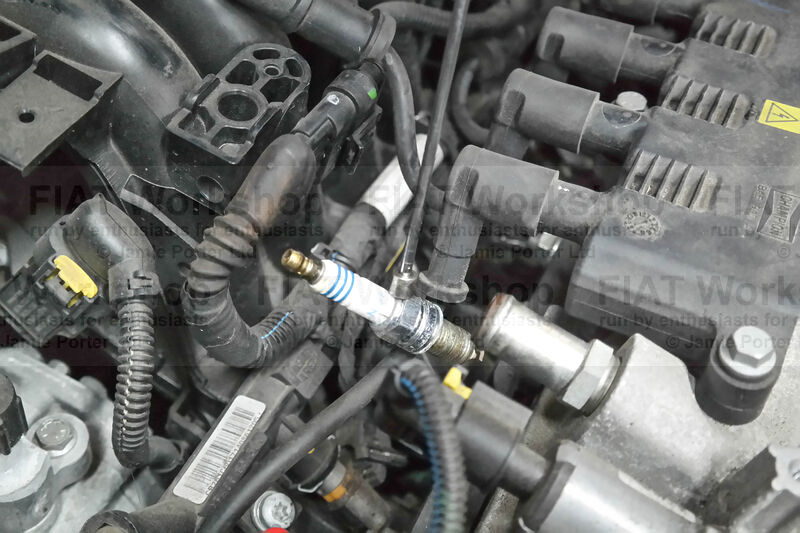

Remove the spark plugs.
