Removing The Front ABS Sensor On A Fiat/Abarth 500

The ABS sensor is not handed so it will fit either side.

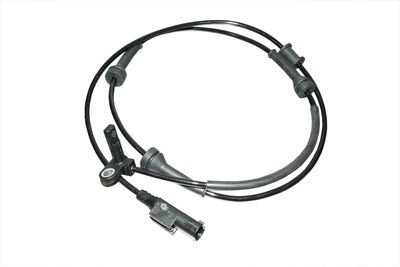

Sensor 52081842

border='1'

Prise off the hub cover with a flat head screwdriver.

border='1'

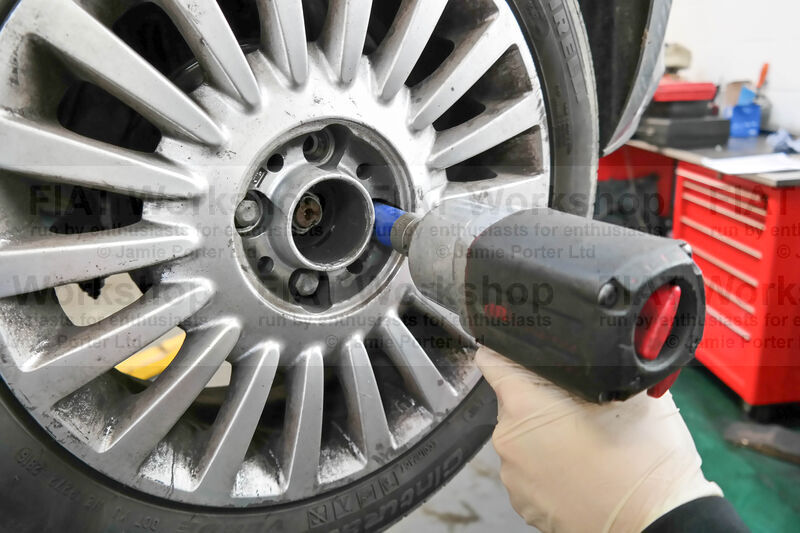

Remove the wheel bolts and wheel.

border='1'

Spray a penetrating lubricant to the sensor and retaining bolt and let it sit for five minutes to soak in. Undo the 5mm allen bolt, and work the ABS sensor lose.

border='1'

Clean out the hole which the sensor sits in.

border='1'

Unclip the wire in the four places shown.

border='1'

Unscrew enough Phillips screws of the front arch liner...

border='1'

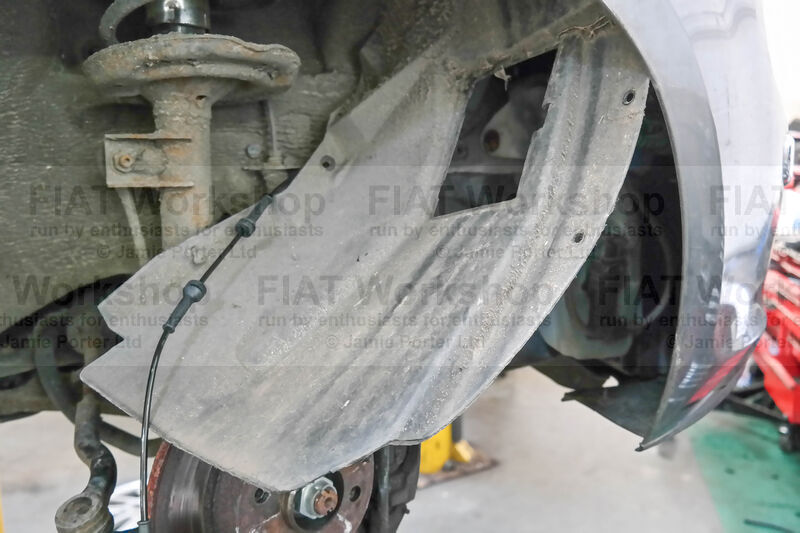

....to enable you to lift the liner to access behind it.

border='1'

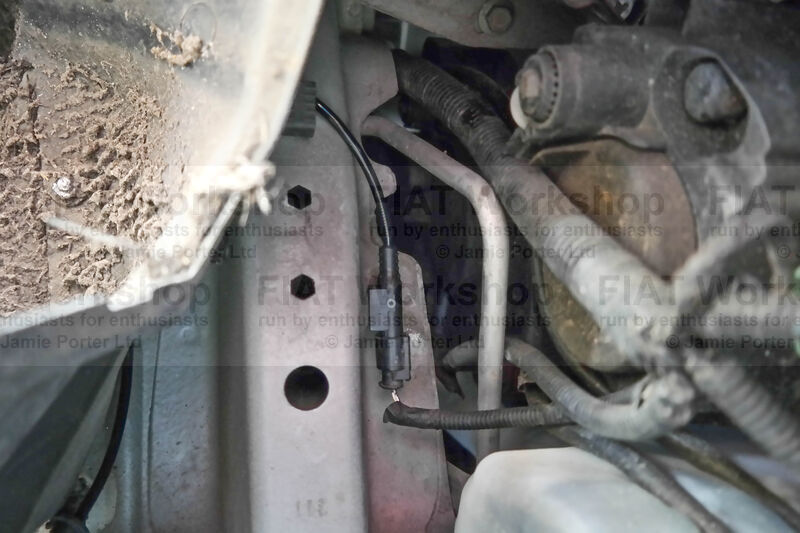

Unclip the sensor from it's bracket and unplug the connector.
