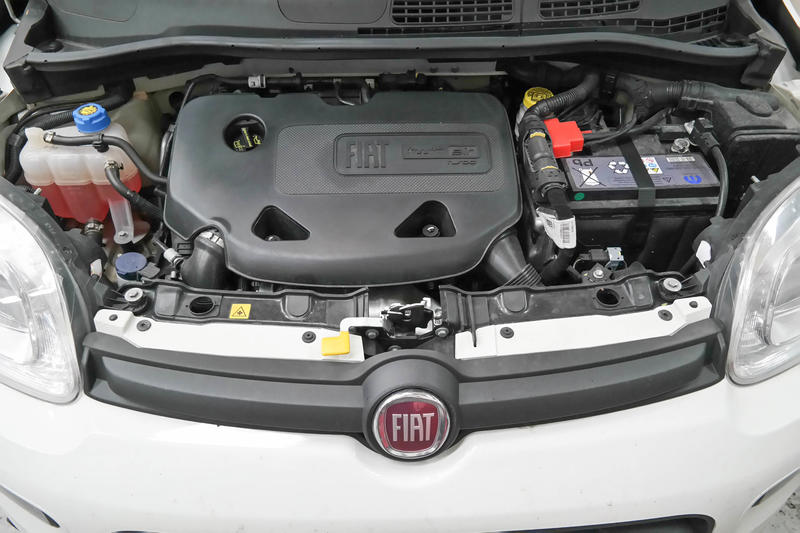

Changing The Oil And Oil Filter On A Fiat Panda 0.9 Twin Air (4x4)

Take care when removing the undertray/engine guard as it is quite robust and surprisingly heavy (weighs 7.6kg).

Oil filter 55224598, sump washer 10261060 and engine oil 13893701









If you would like to book yourself in the price of this service in our workshop is £98.30

:alt

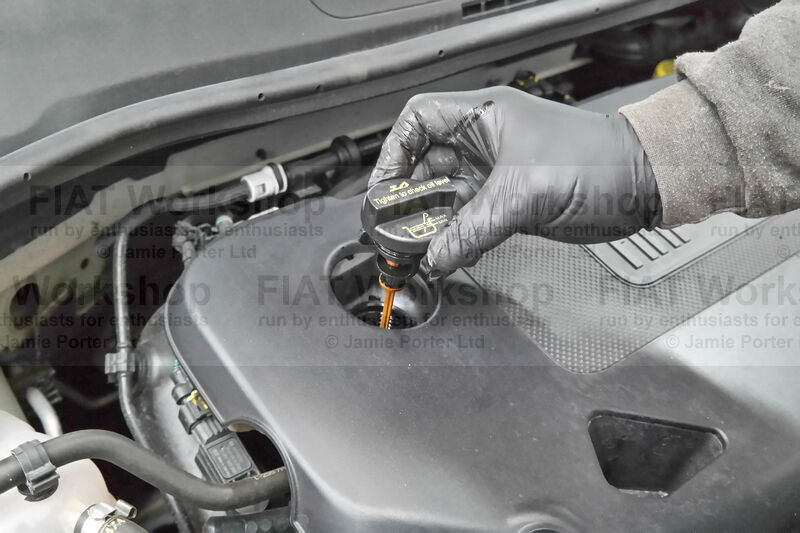

Unscrew the oil filler cap.

:alt

Undo the x2 10mm engine cover bolts.

:alt

Unclip the turbo air intake pipe.

:alt

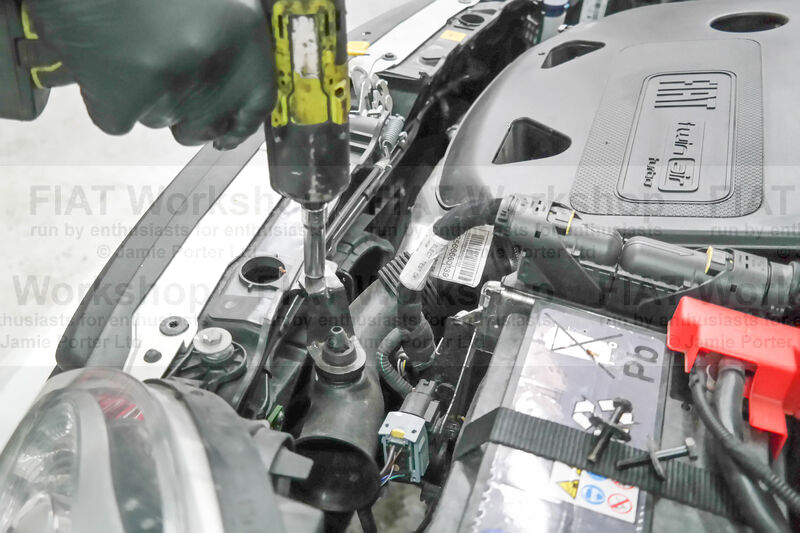

Undo the 10mm bolt to the bracket holding the air intake pipe to the air filter box and remove the engine cover.

:alt

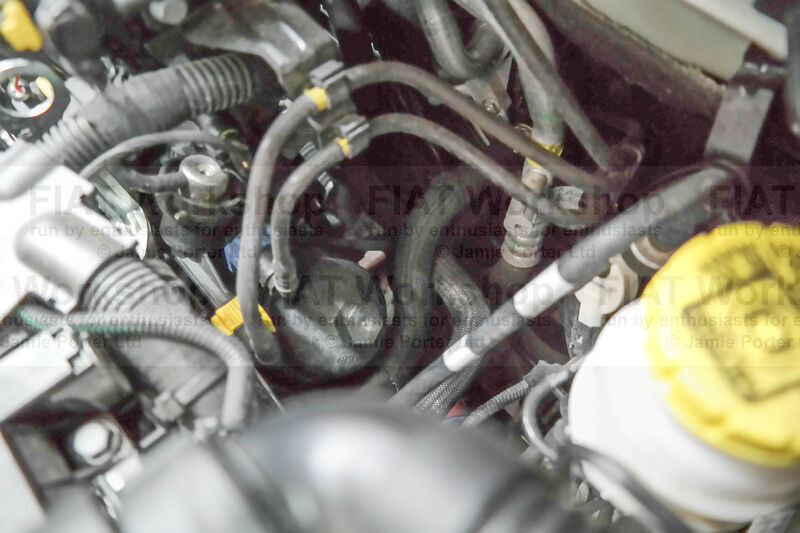

If you're facing the engine the oil filter housing is at the back of the engine on the right side.

:alt

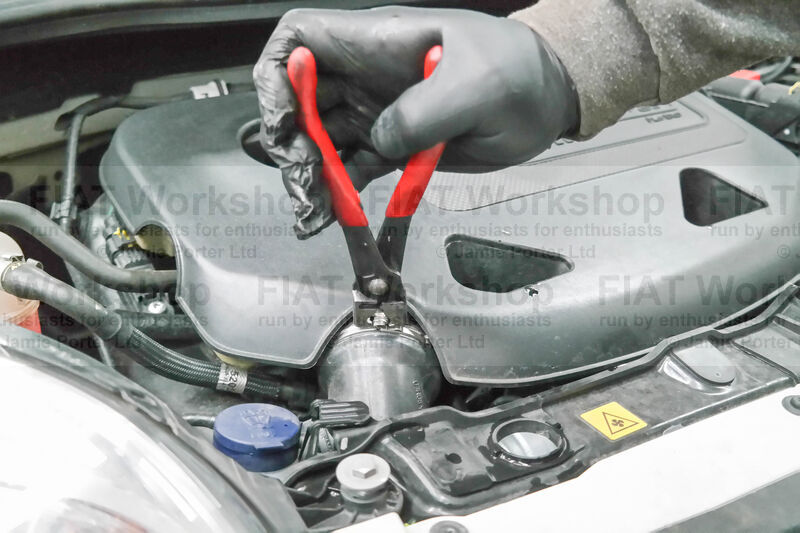

Undo the 24mm oil filter housing cap and remove.

:alt

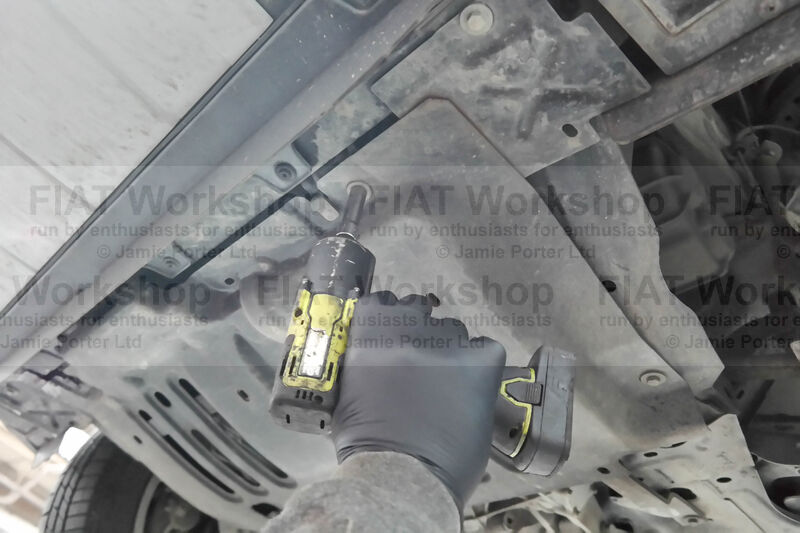

Undo the x8 10mm bolts to the undertray/engine guard.

:alt

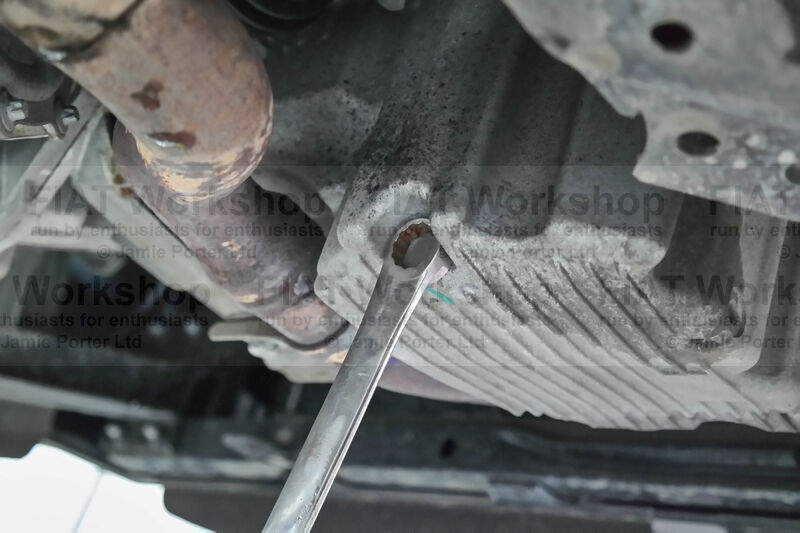

The sump plug is 17mm.

:alt

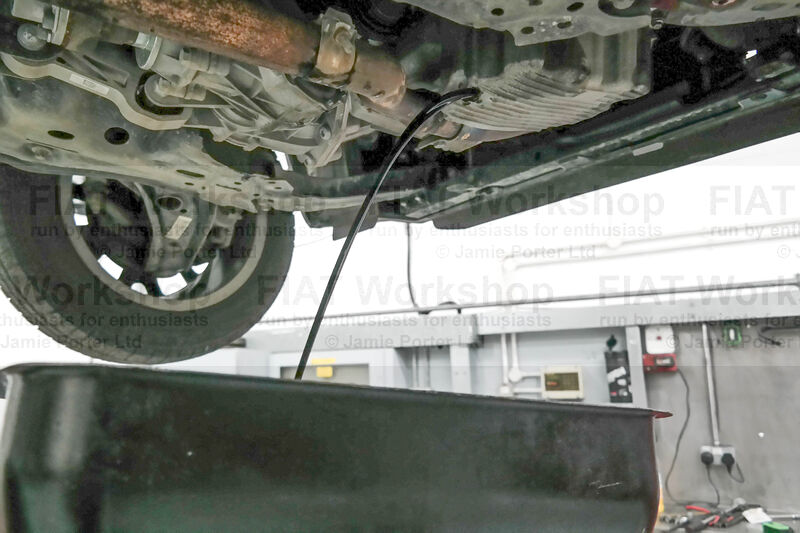

Drain the engine oil into a suitable container.

:alt

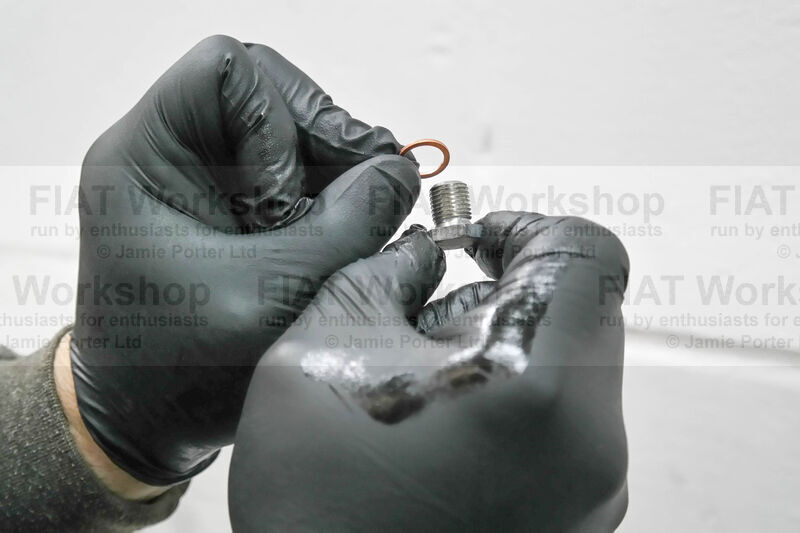

Replace the sump plug and use a new sump plug washer.

:alt

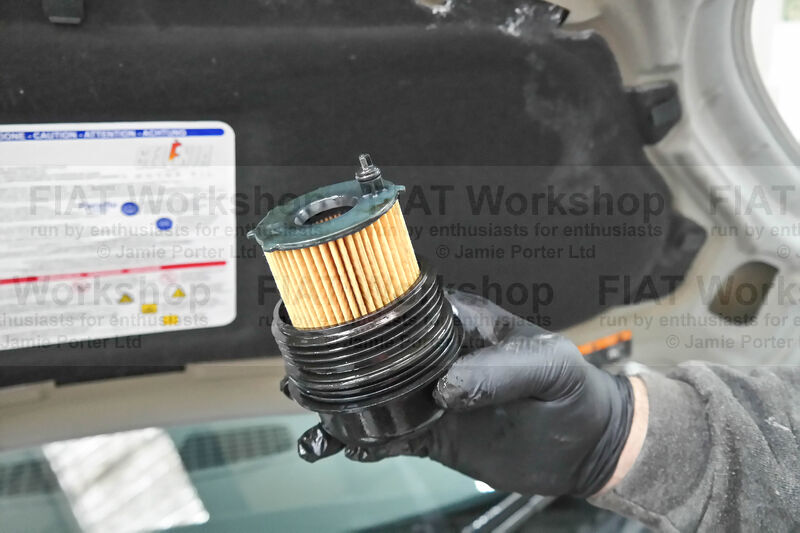

Remove the old oil filter from the housing cap...

:alt

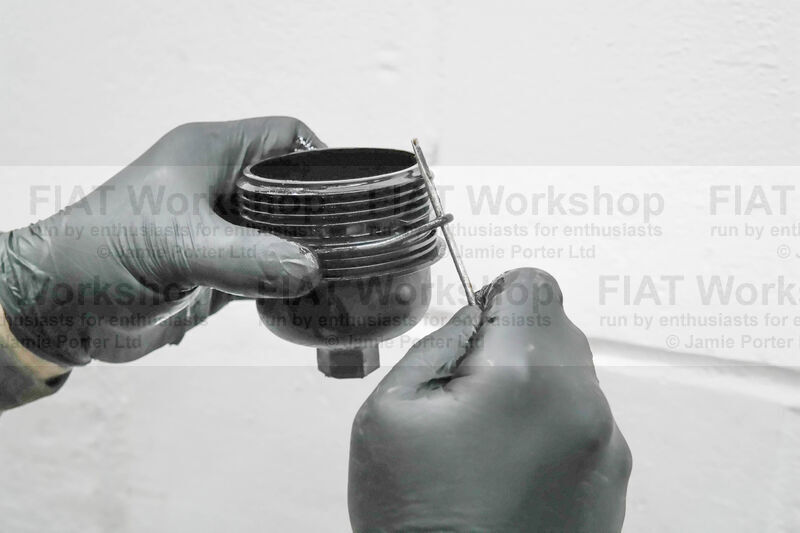

...and replace the old seal.

:alt

Insert the new oil filter. When fitting the filter back into the housing on the engine, the lug on the bottom of the oil filter needs to align.

:alt

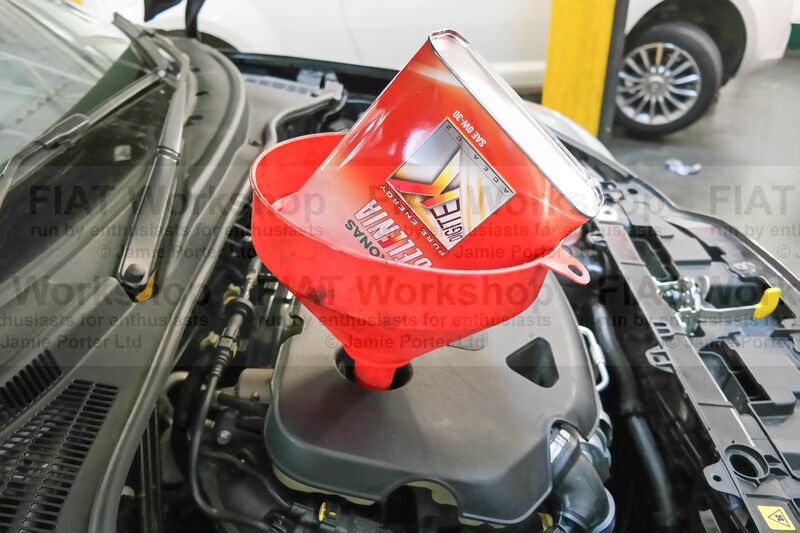

Replace the rest of the parts you have removed, pour in the recommended amount of oil then check the oil level and top up if necessary.
