Replacing The Spark Plugs On A Fiat 124

To replace the spark plugs it's a simple case of cover off and coil packs out.
Spark plug 55244561

:alt

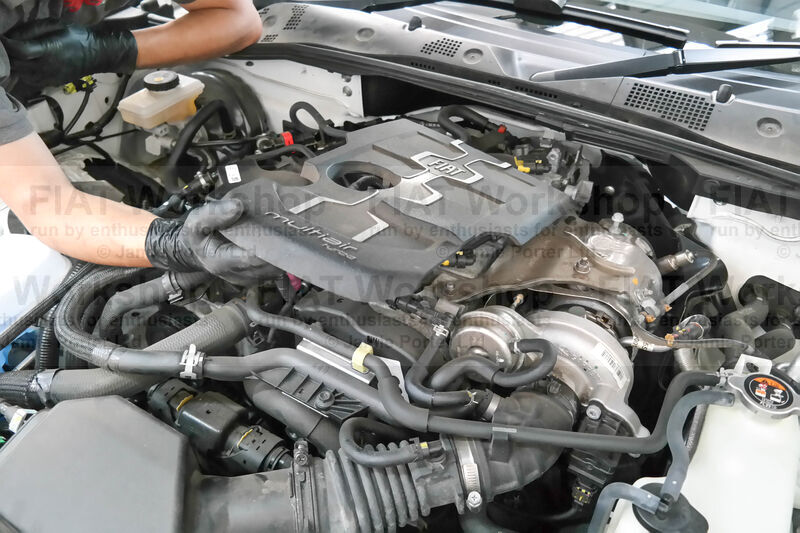

Pull off the plastic engine cover.

:alt

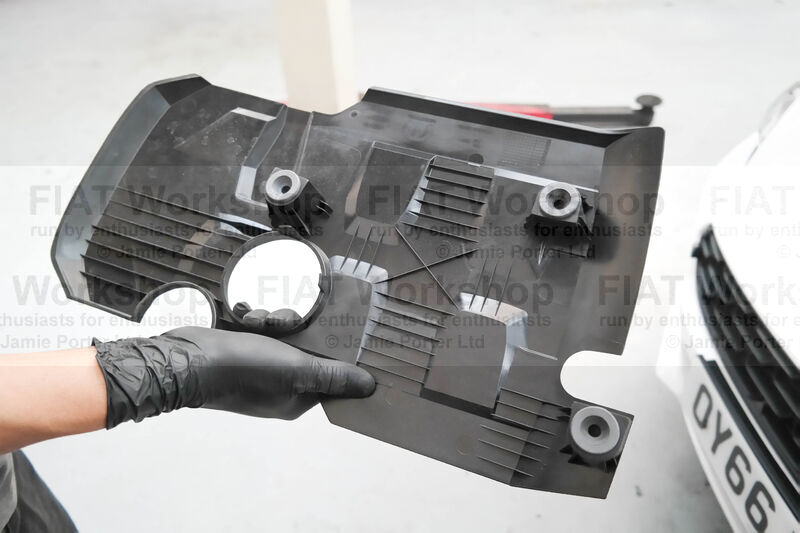

There's three push fittings.

:alt

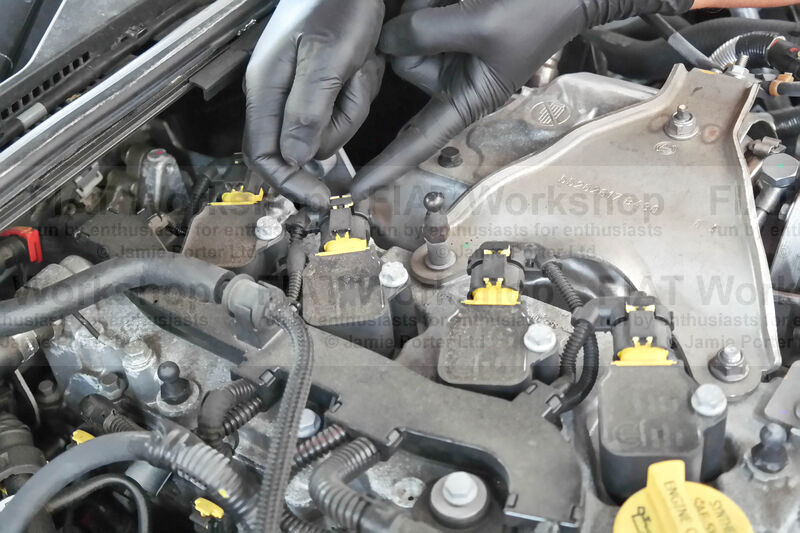

Pull out all x4 locking pins and unplug the connectors to the coil packs.

:alt

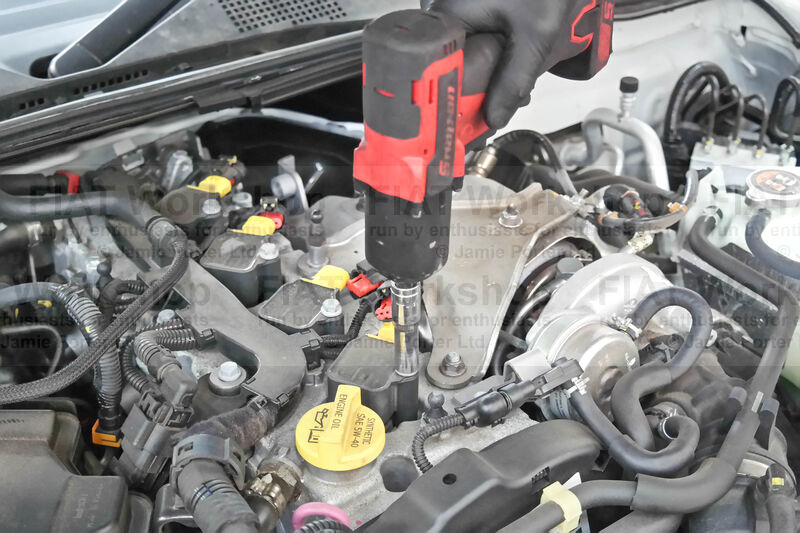

Undo all x4 10mm securing bolts to the coil packs.

:alt

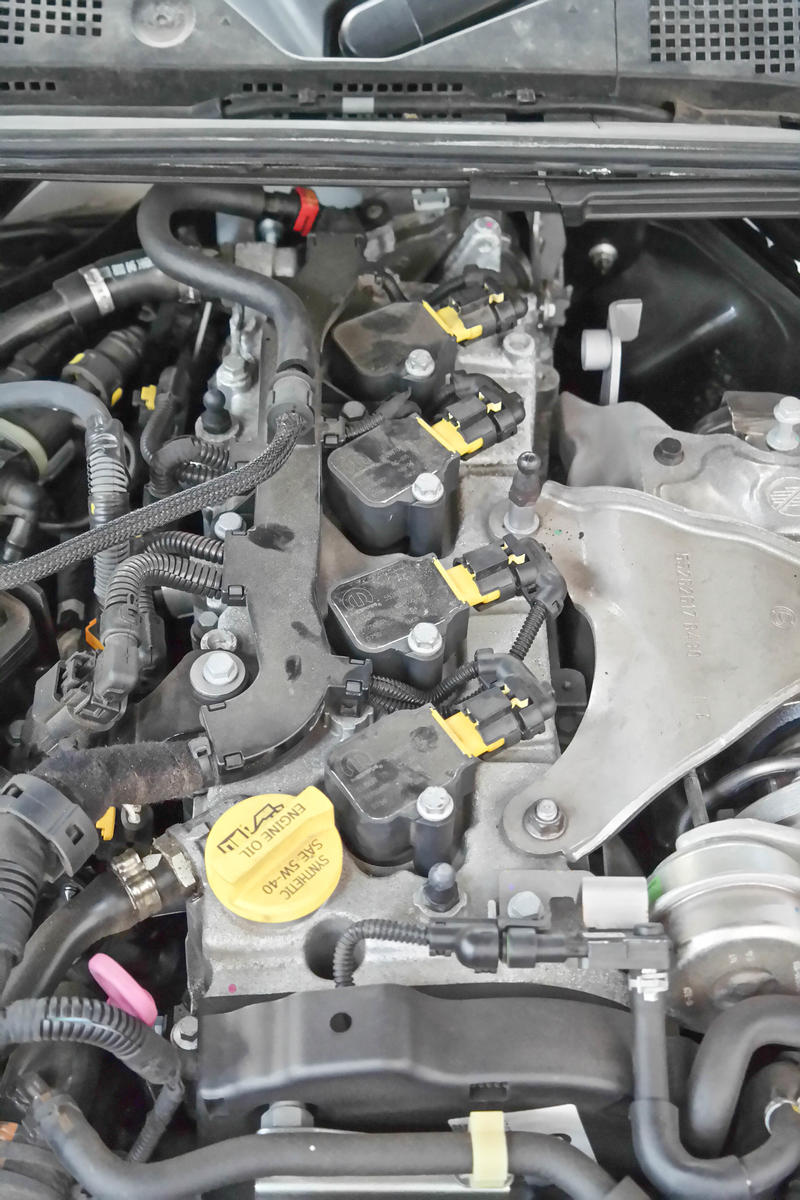

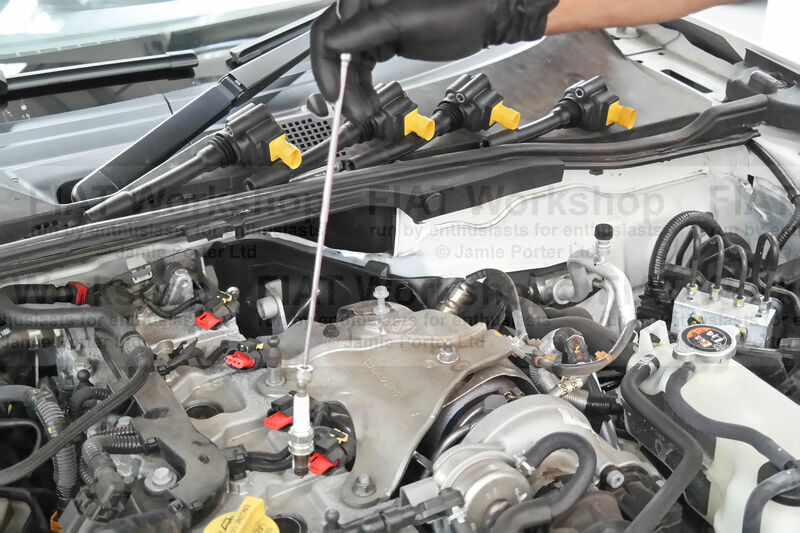

Pull out the coil packs.

:alt

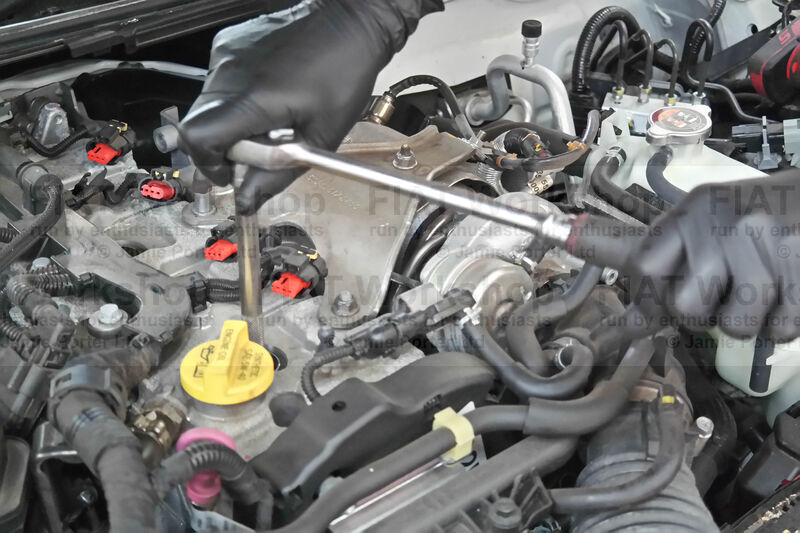

Using a 16mm spark plug socket unscrew the spark plugs....

:alt

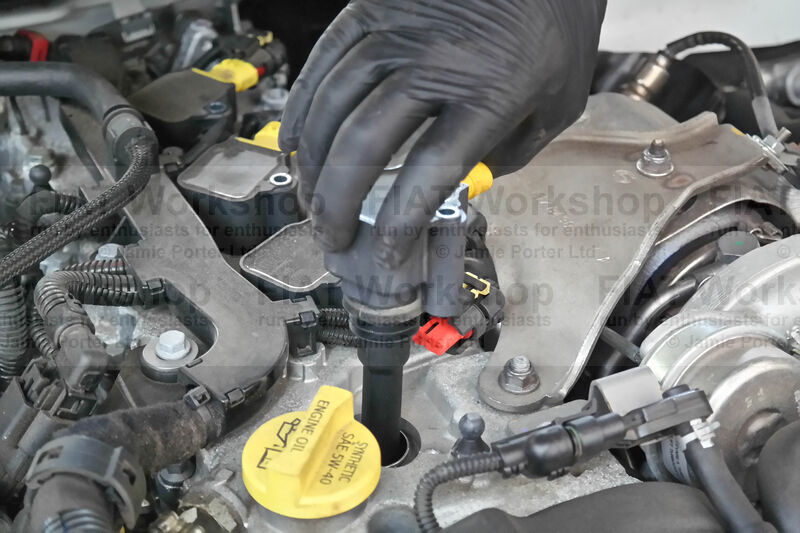

....and remove. When fitting the new spark plugs torque them to the recommended setting, do not over tighten.
