Removing The Air Filter On A Fiat 500/Panda/Punto/Grande Punto 1.2 8v

You can replace the air filter in situ but if you prefer to remove the whole air filtration box you just need to disconnect the two breather pipes. This 'How to' is based on the 500.

Air filter 55192012

:alt

Undo the x2 10mm bolts to the air filtration box.

:alt

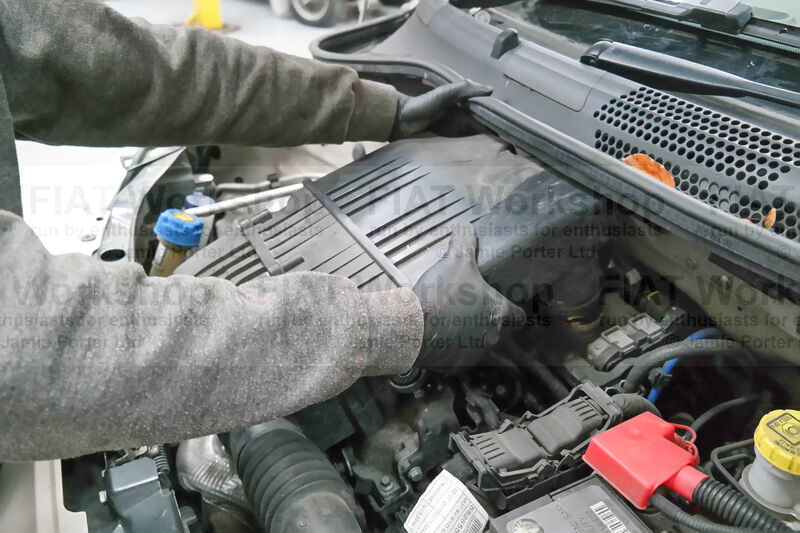

Pull the filtration box lose from the top mounting lug.

:alt

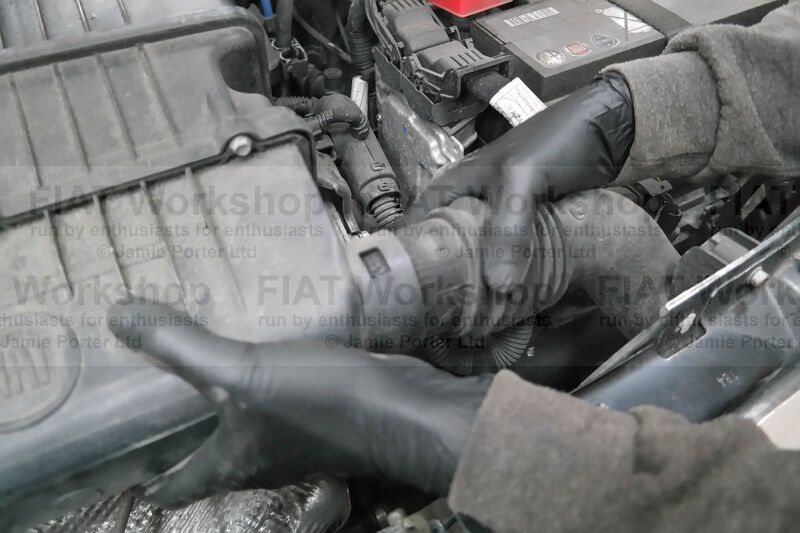

Pull out the air intake sleeve.

:alt

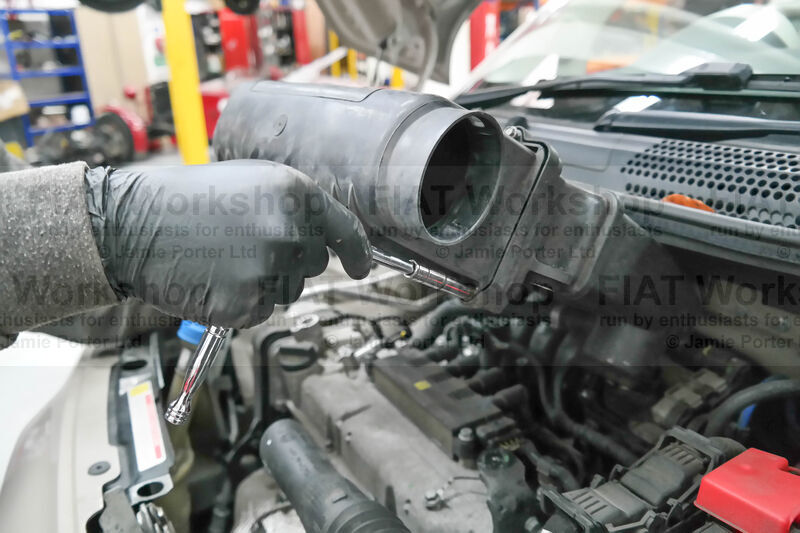

Hold up the the air filtration box and undo the x6 7mm screws to the air filter housing.

:alt

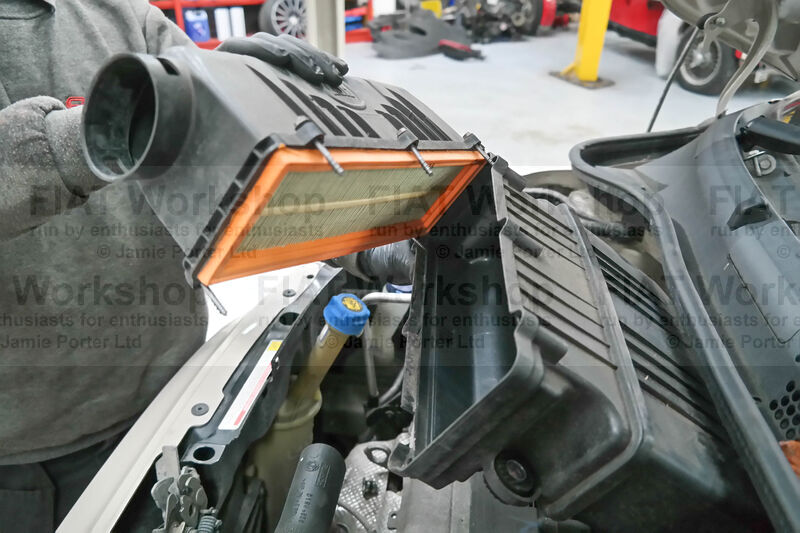

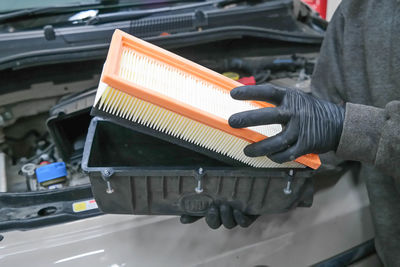

Lift the top off of the air filter housing and remove the air filter.
