Replacing The Fuel Filter On A Fiat 500x 1.6/2.0 JTDM


When replacing the fuel filter don't forget to bleed the fuel filter housing at the bleed nipple. This 'How to' is based on the 1.6 model.

Fuel filter 77366607

:alt

Remove the plastic engine cover.

:alt

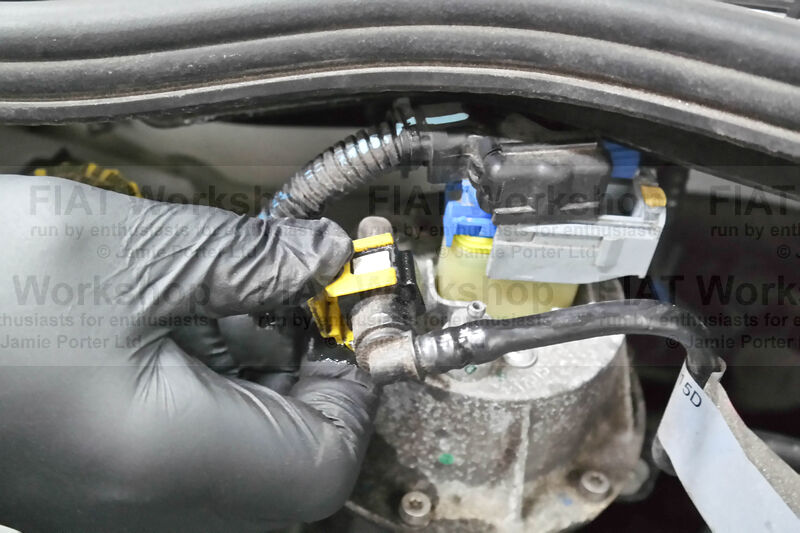

Pull the yellow locking tab to the fuel filter outlet hose and squeeze the connector to release.

:alt

Undo the x2 10mm bolts holding the fuel filter housing.

:alt

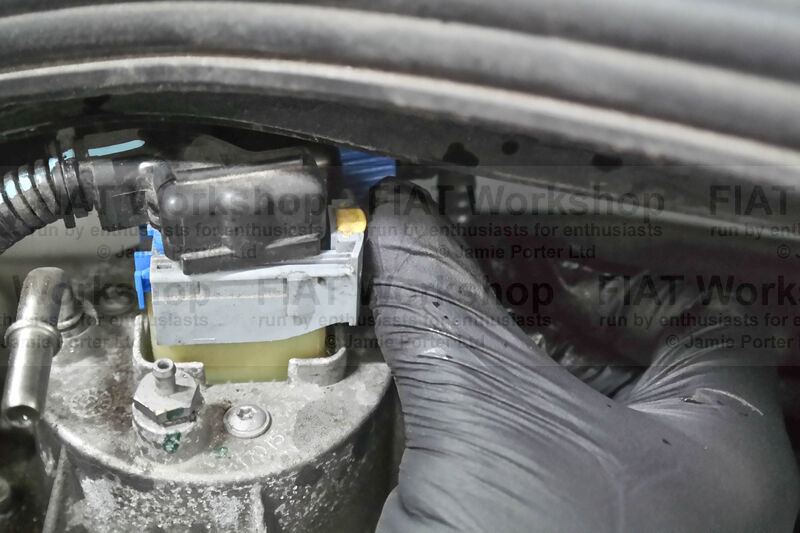

Lift up the yellow securing pin to the fuel sensor connector and slide the connector to your right.

:alt

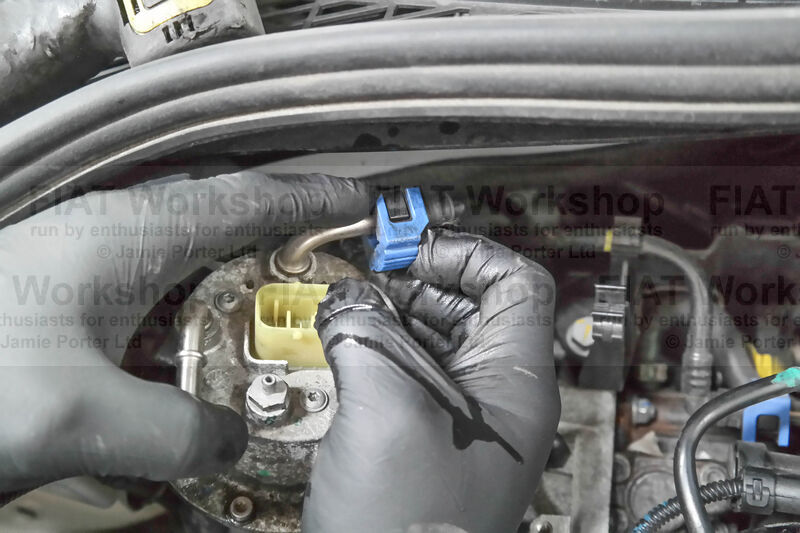

Slide back the blue locking tab to the fuel filter inlet hose and disconnect the hose.

:alt

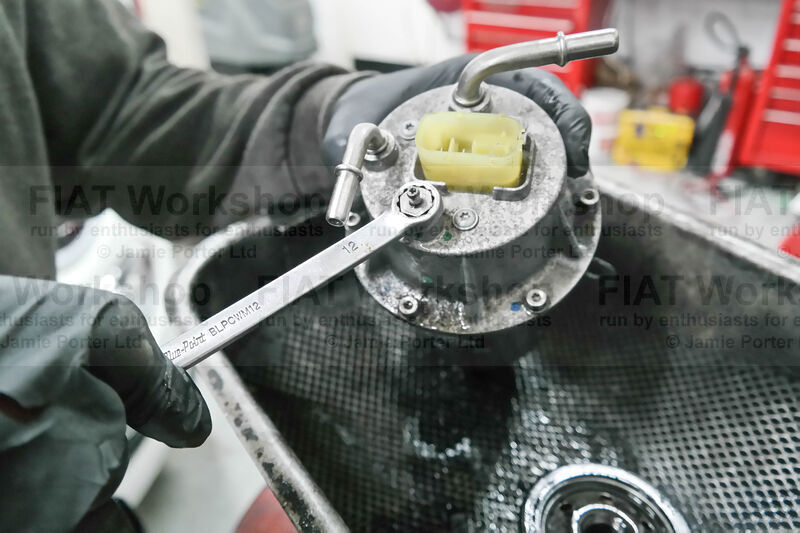

Loosen the 12mm bleed nipple....

:alt

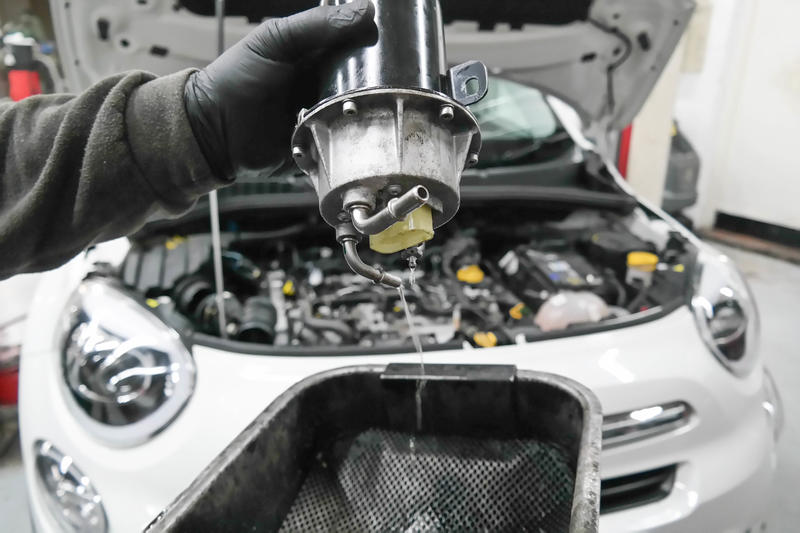

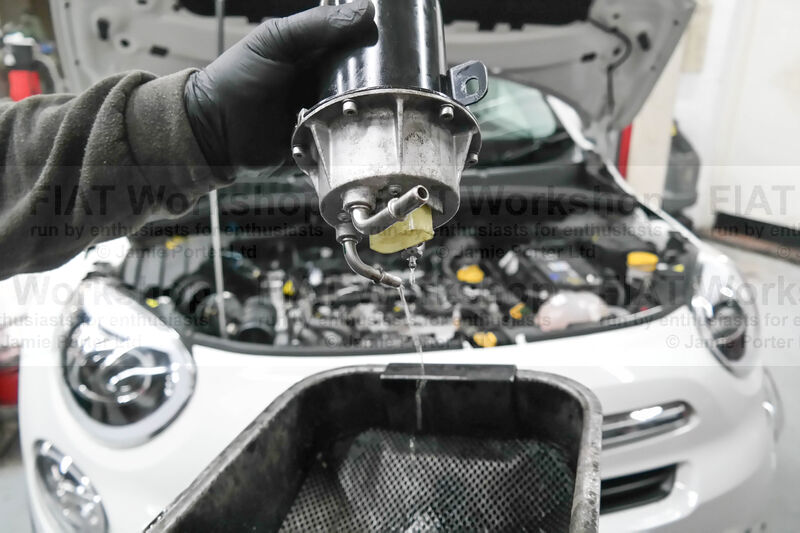

....and drain the fuel into a suitable waste container.

:alt

Undo the x6 T20 (Torx) bolts on top of the fuel filter housing.

:alt

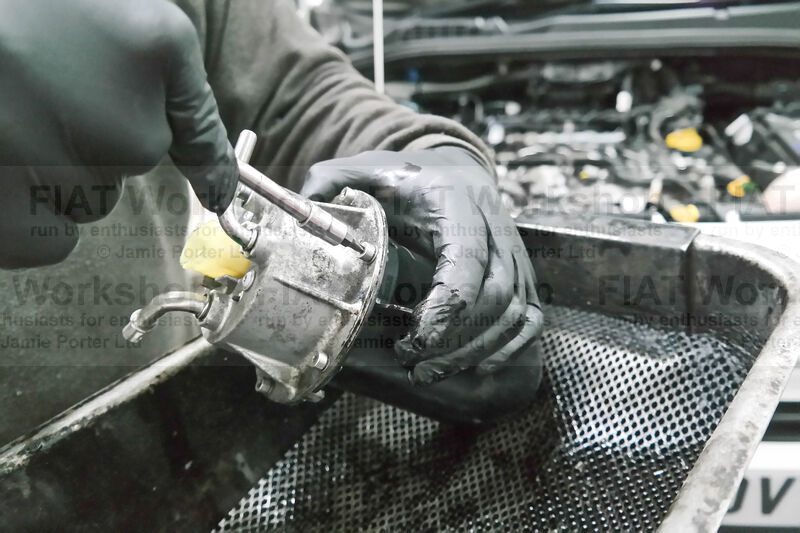

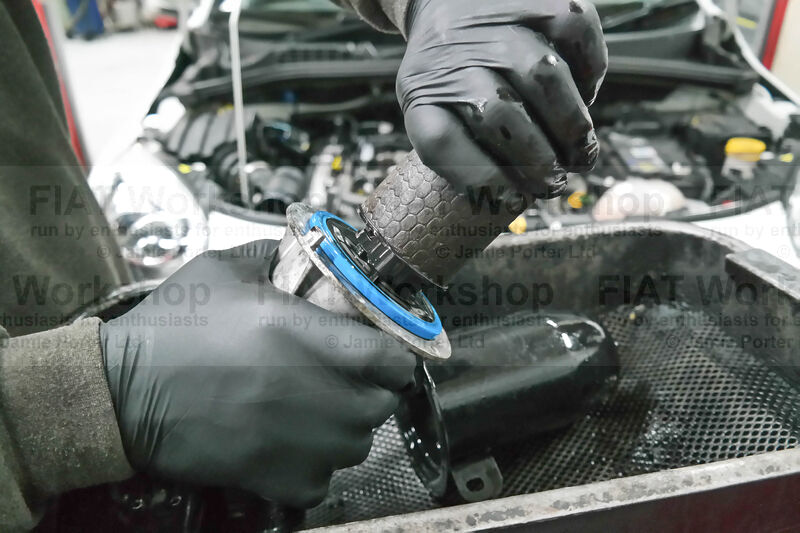

Remove the old fuel filter.

:alt

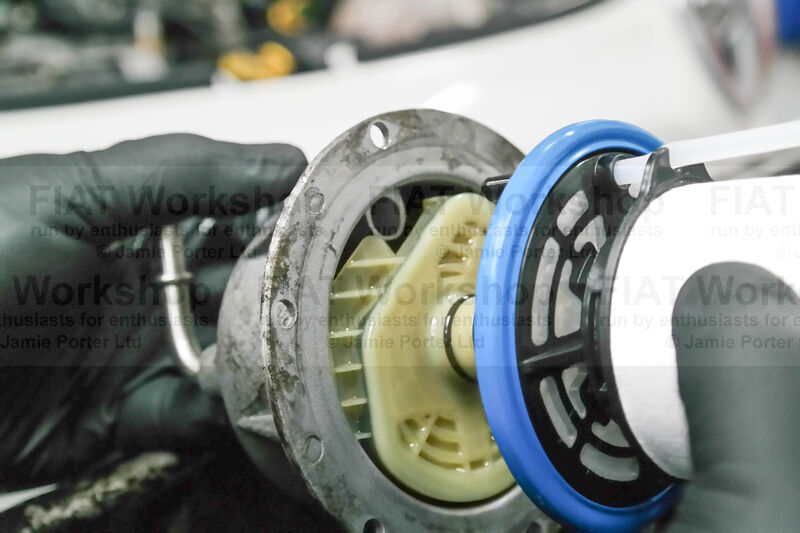

When replacing the new fuel filter make sure the breather pipe lines up with the breather hole.
