Replacing The Oil And Oil Filter On A Fiat 500x MJET






The oil filter housing is located just above the right side drive shaft so you may need a short spanner. This 'How To' is based on the 1.6 MJET.
Oil filter 71754237, sump plug washer 55196309 and engine oil 13883701

Workshop time: 30 mins


If you would like to book your 500x JTDM into the workshop the price of this service is £147.18


border='1'

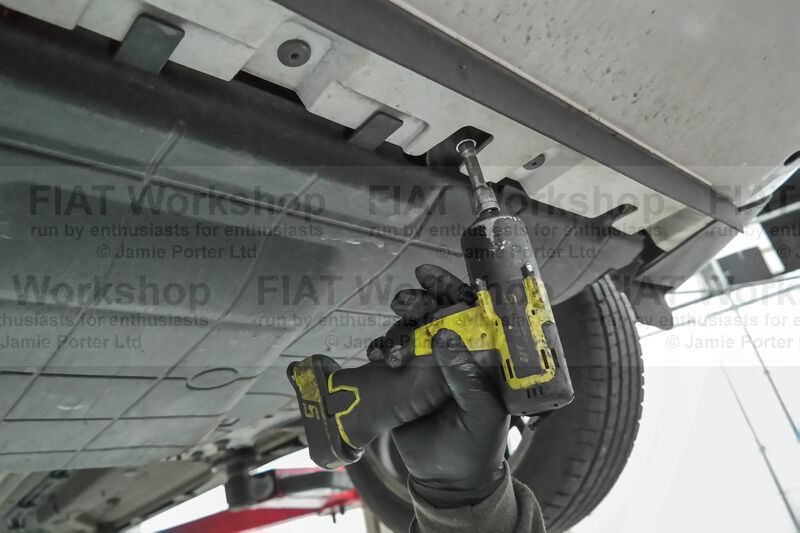

Undo the the x4 10mm undertray screws (x2 front, x2 rear)...

border='1'

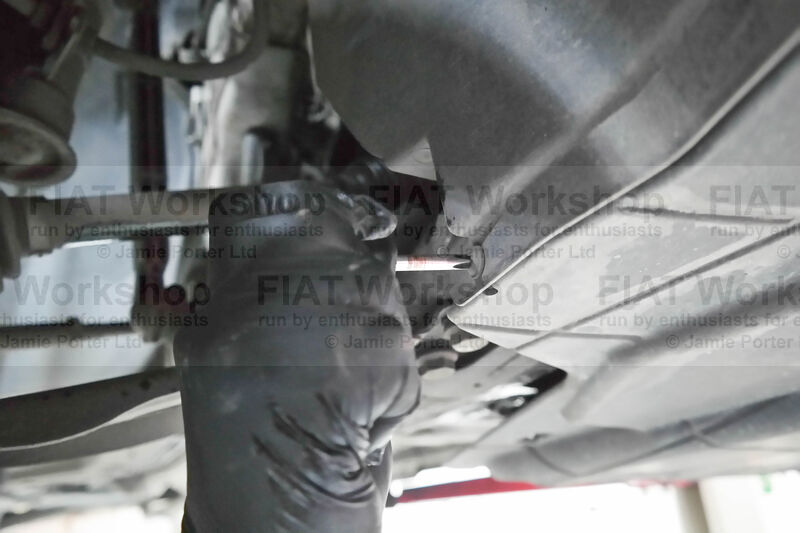

...and the x4 Philips (x2 on either side).

border='1'

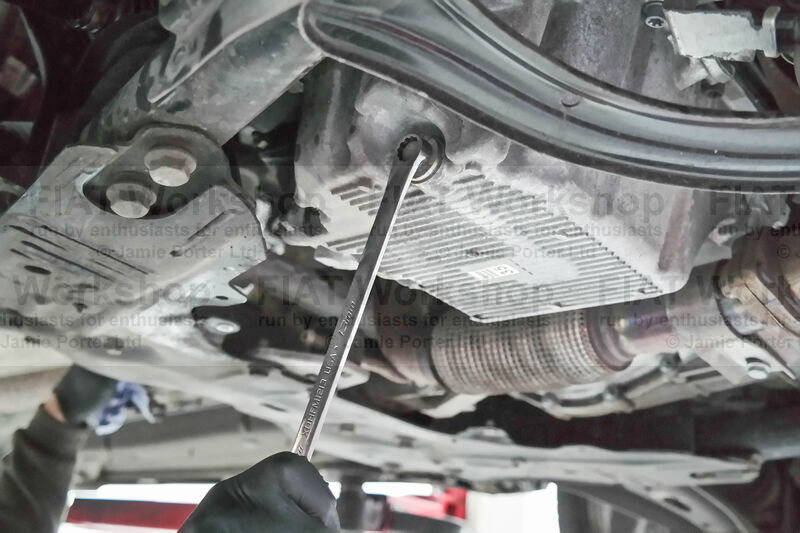

The sump plug is 13mm.

border='1'

Drain the oil into a suitable waste container.

border='1'

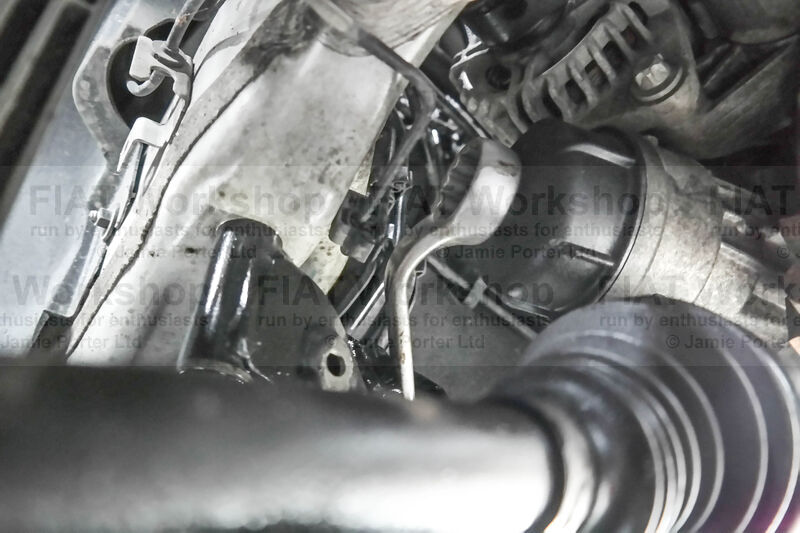

The cap to the oil filter housing is 32mm (there will be some oil spillage).

border='1'

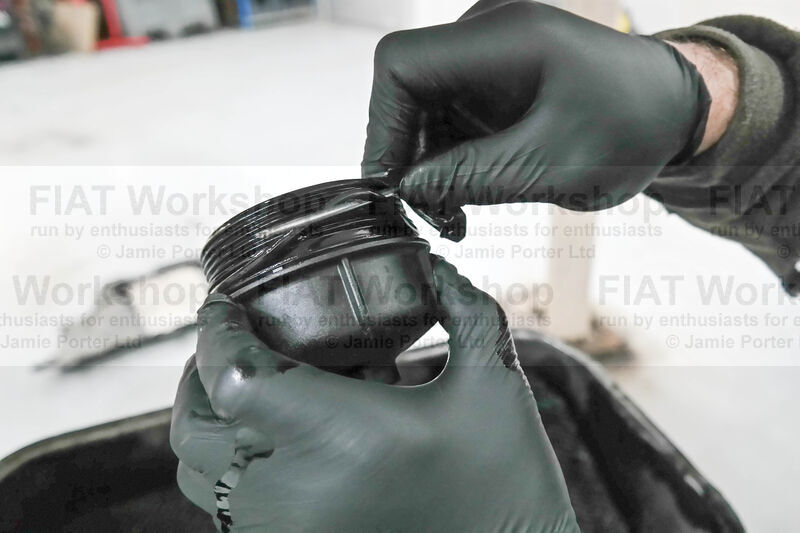

Remove the old oil filter and replace the o-ring seal.

border='1'

Insert the new oil filter and screw on the cap.

border='1'

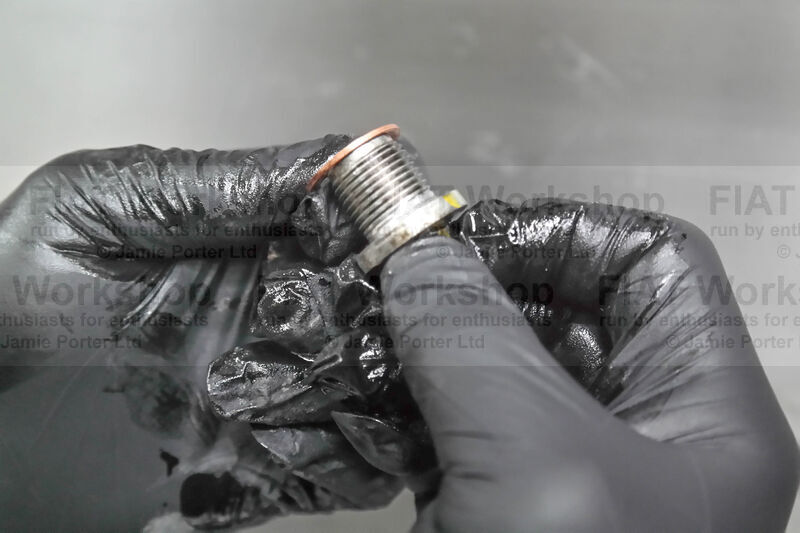

Renew the sump plug washer and replace the sump plug. Fit the undertray.

border='1'

Undo the oil filler cap.

border='1'

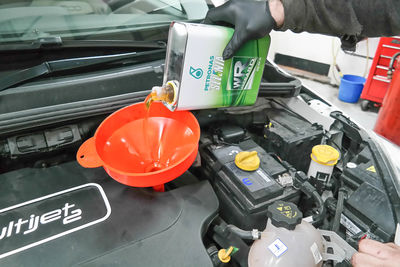

Pour in about x5 litres of the recommended engine oil. Screw the oil filler cap back on then briefly start the engine to circulate the oil.

border='1'

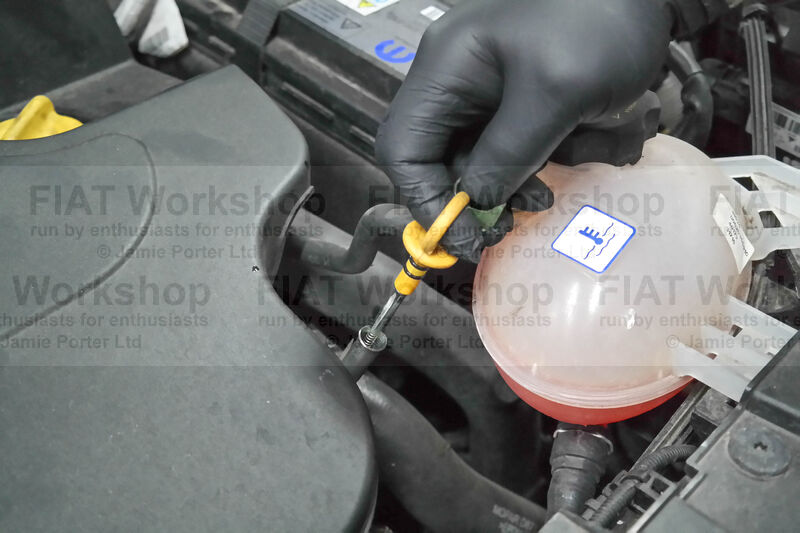

Pull out the dip stick.

border='1'

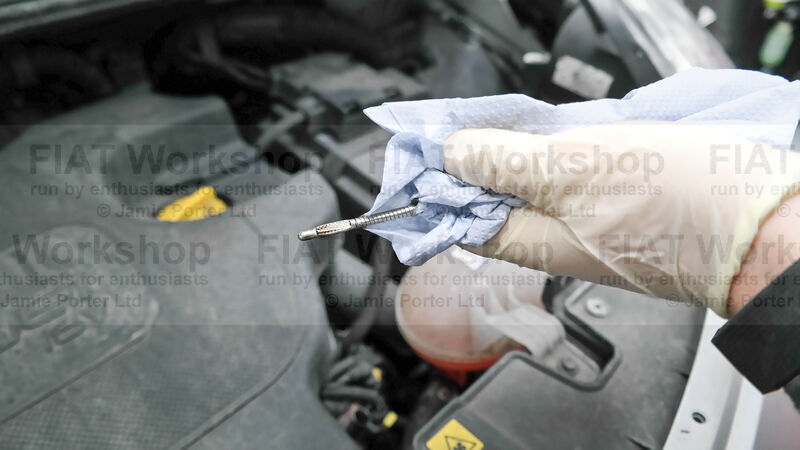

Wipe it, put it back, pull it out again and check the level. Top up if necessary.
