Replacing The Front Brake Pads And Discs On A Fiat Grande Punto 1.4 8 Valve

If you haven't been supplied new spring clips with your brake pads then you will need to give the old ones a good cleaning.
Brake pads 77366134
Brake discs 55700921

border='1'

Remove the front wheel. You can do both sides at the same time or just one side at a time.

border='1'

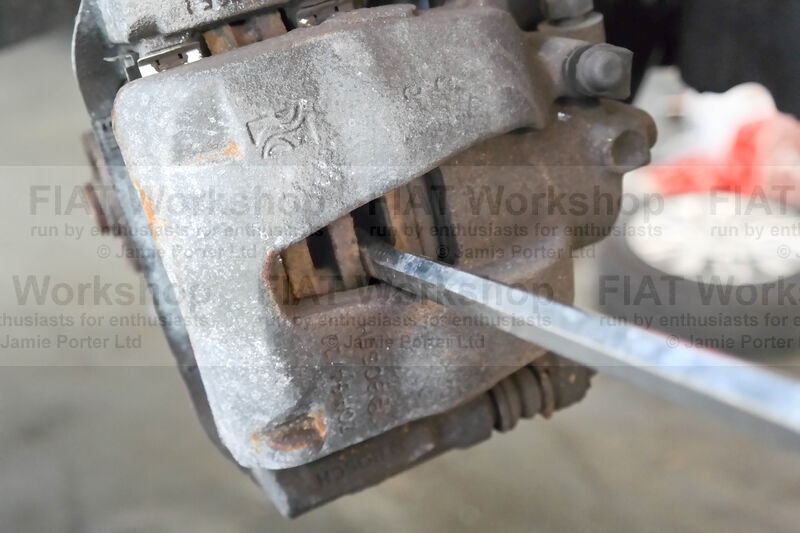

If you can (using a suitable bar) prise the pads apart from the disc to push back the piston otherwise you will need to use a piston winding tool.

border='1'

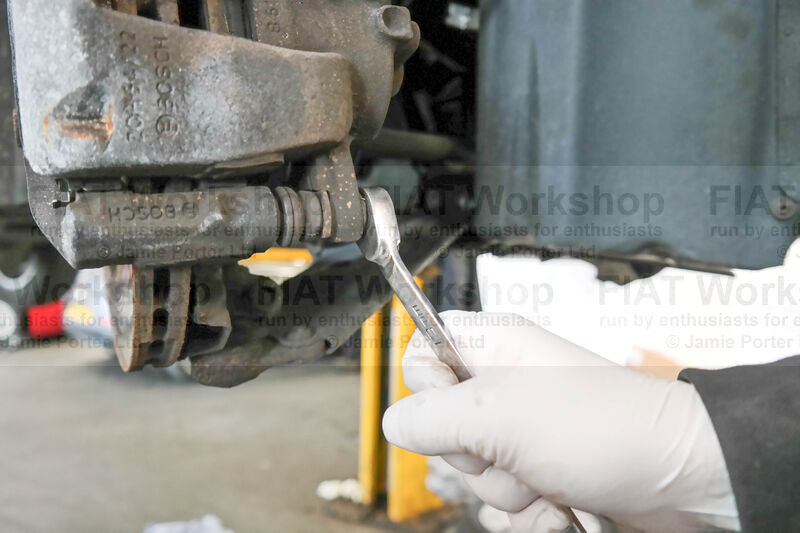

Undo the x2 13mm brake caliper bolts...

border='1'

....and remove the caliper.

border='1'

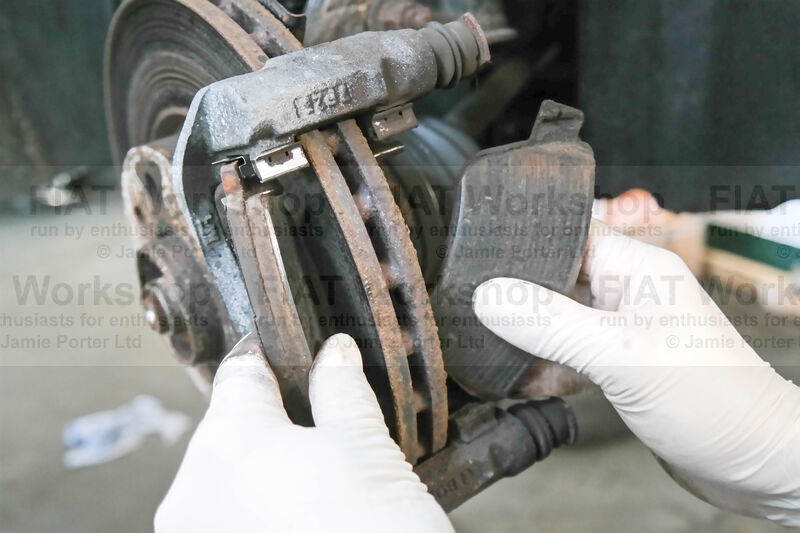

Take out the old brake pads.

border='1'

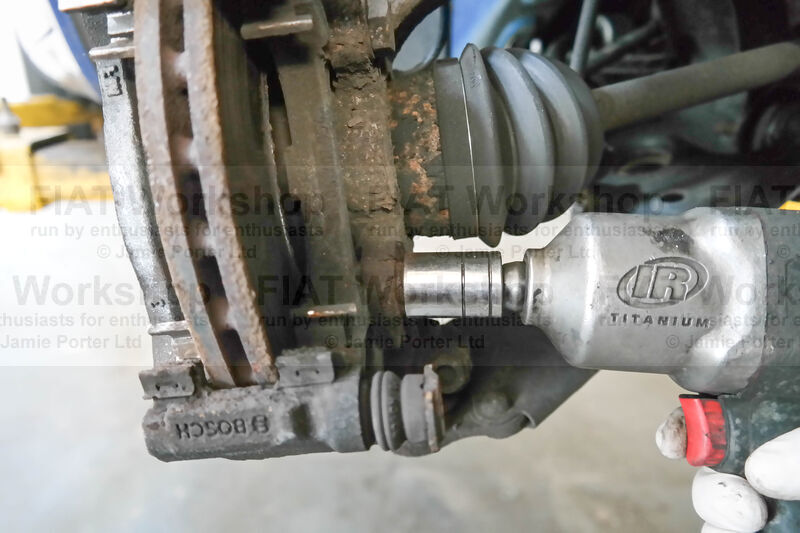

Undo the x2 19mm caliper carrier bolts.

border='1'

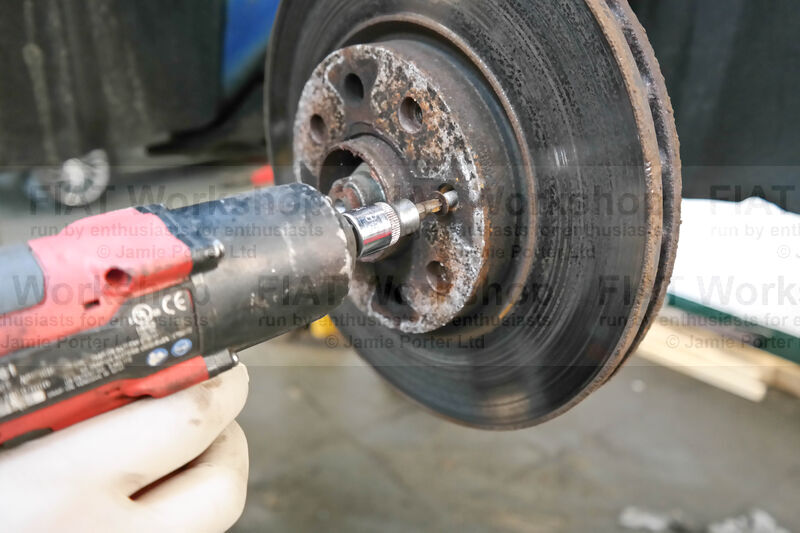

Undo the x2 T30 (TORX) disc locating screws and remove the old brake disc.

border='1'

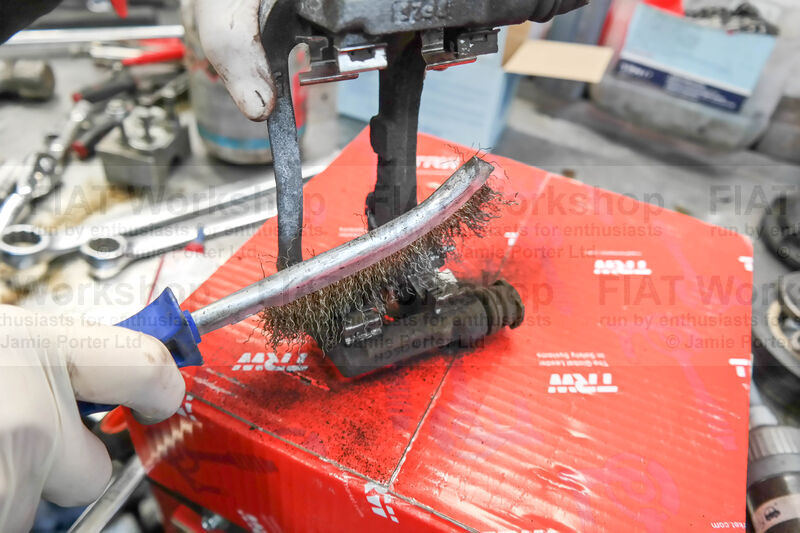

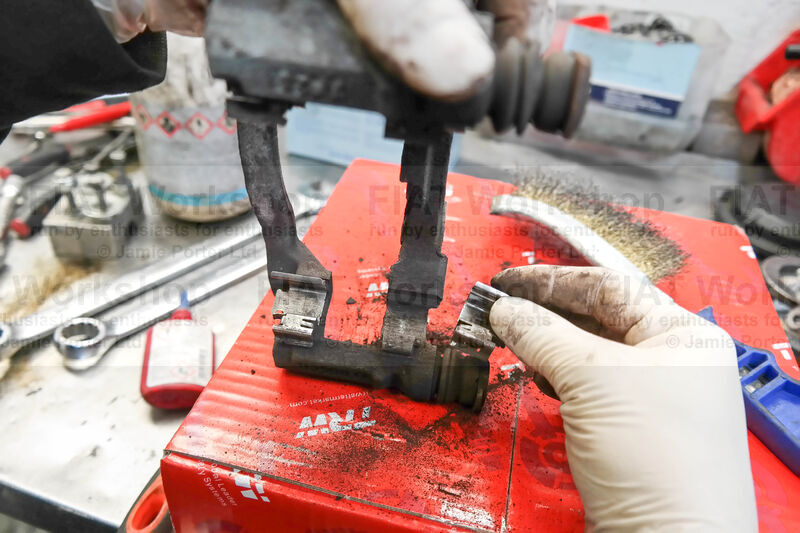

Using a wire brush give the carrier and spring clips a good cleaning.

border='1'

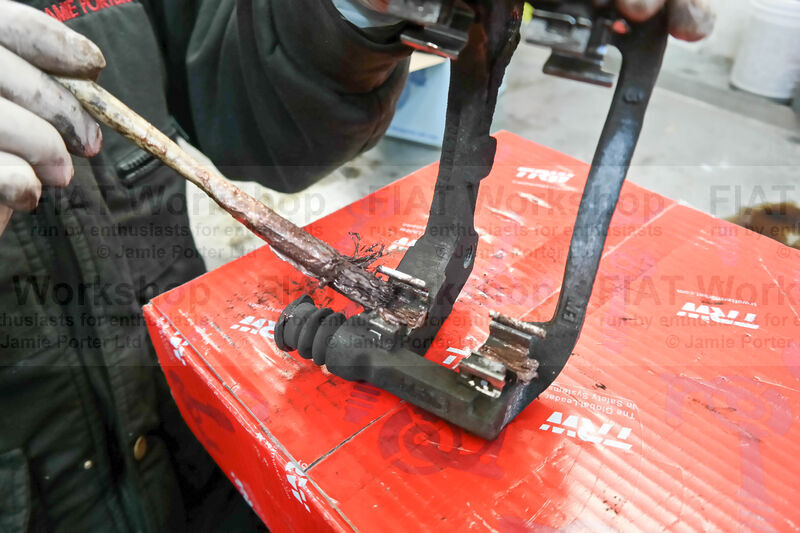

Brush behind the spring clips also.

border='1'

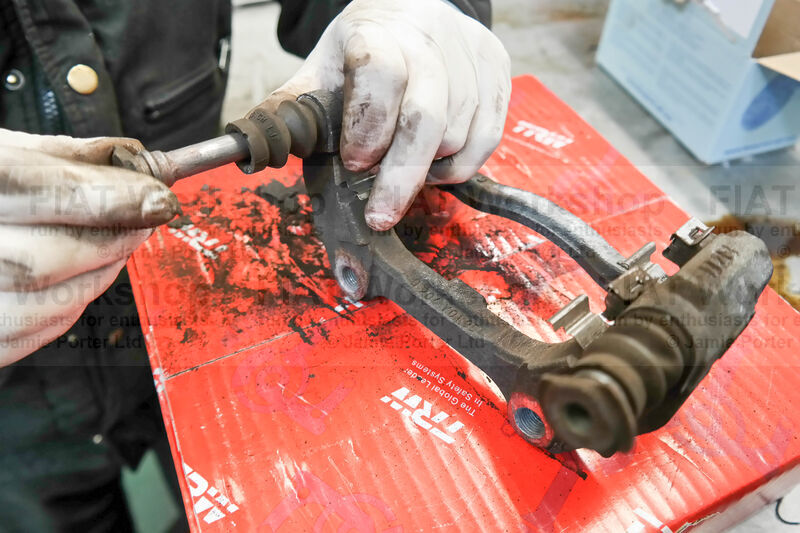

Remove the x2 slider bolts...

border='1'

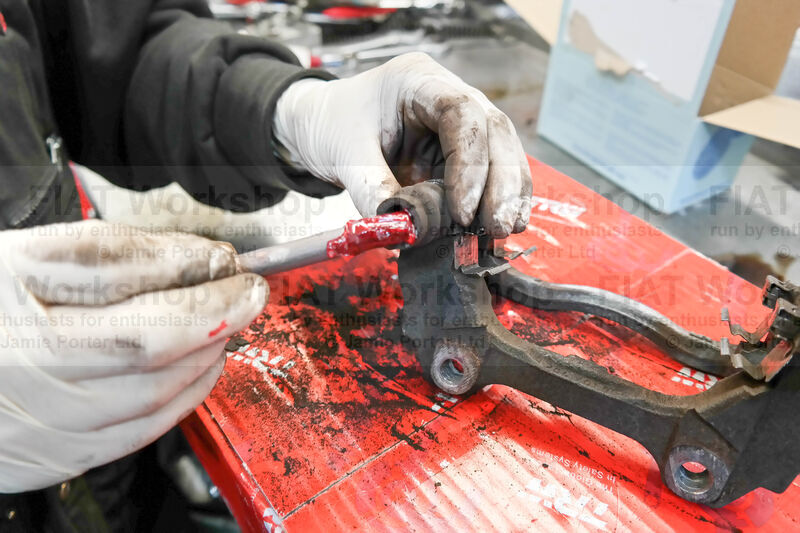

...and lubricate with Red Rubber Grease or something similar.

border='1'

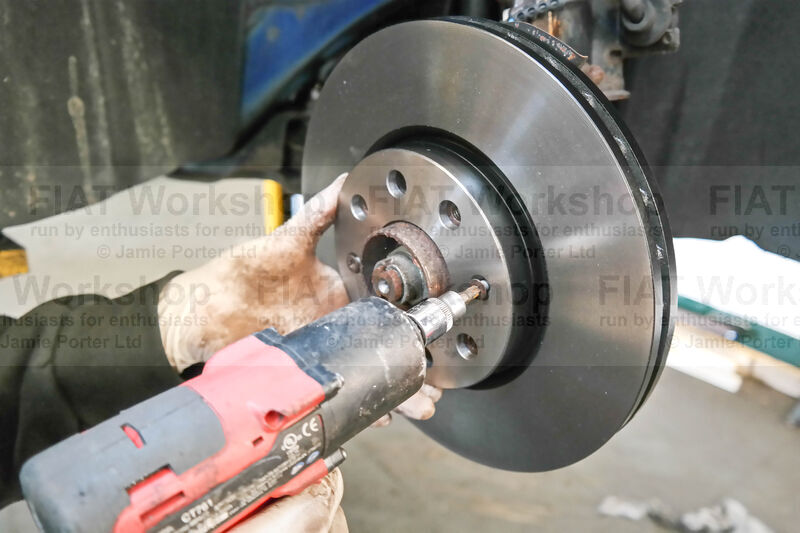

Replace the new brake disc.

border='1'

Copper slip the spring clips where the brake pads fit and remount the carrier.

border='1'

Fit the new brake pads then replace the caliper and wheel.
